Panel Mount Monitors · Part no.
IDD2X104
IDD2X104 — 10.4″ Industrial Monitor
10.4″ 1024 × 768 industrial monitor with an IP65 front bezel.

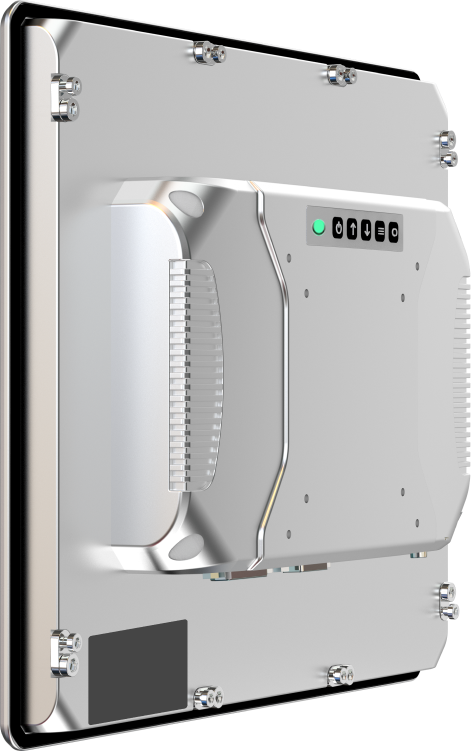

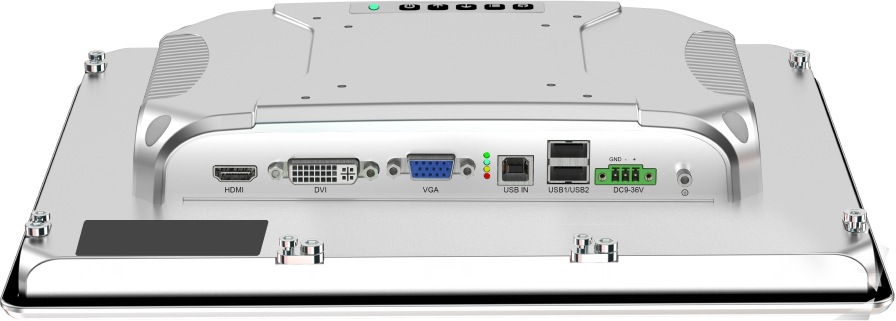

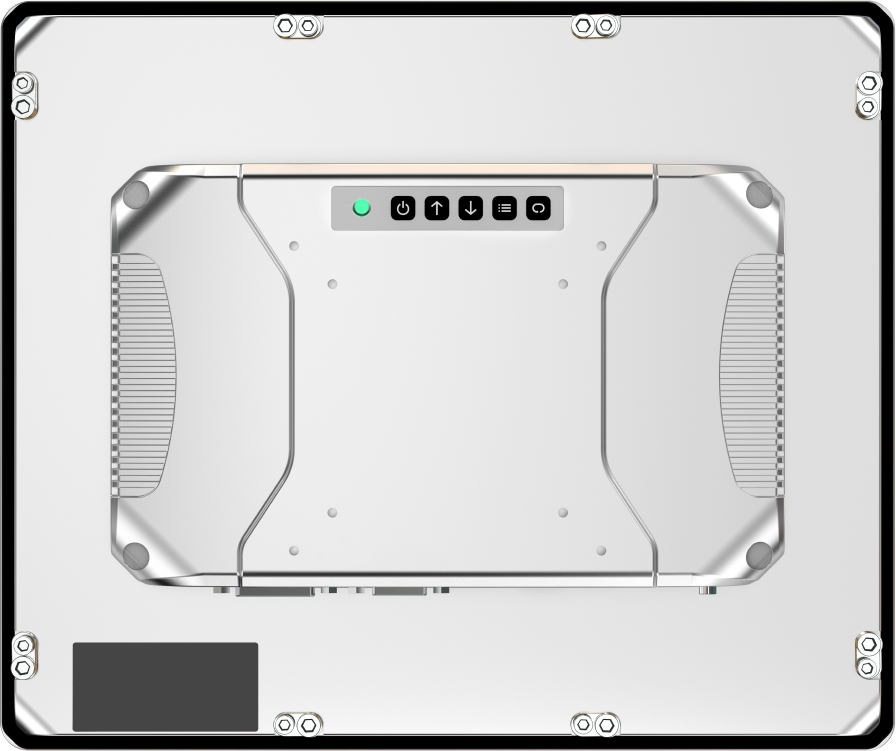

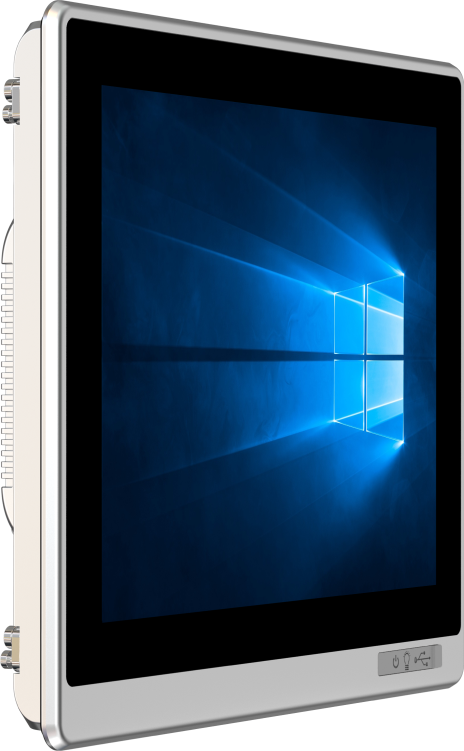

The IDD2X104 is a 10.4″ industrial monitor with a 1024 × 768 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a -20 to 70 °C operating range. Power input is 12–36 V DC, drawing 5 W. Mounting options are embedded, wall-mounted, VESA, desktop.
In production
Technical specifications
16 specs
| Product | |
|---|---|
| Product family | IDD2X |
| Display | |
| Display Size | 10.4inches |
| Resolution | 1024 × 768 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
| Operating Temperature (min) | -20°C |
| Operating Temperature (max) | 70°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Wall mount | Yes |
| VESA mount | Yes |
| Desktop stand | Yes |
Across the series
5 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IDD2X101 | This modelIDD2X104 | IDD2X116 | IDD2X121 | IDD2X122 | IDD2X150 |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 10.1inches | 10.4inches | 11.6inches | 12.1inches | 12.2inches | 15inches |
| Resolution | 1280 × 800 | 1024 × 768 | 1920 × 1080 | 1024 × 768 | 1280 × 800 | 1024 × 768 |
| PowerInput Voltage (min) | 9V DC | 12V DC | 12V DC | 12V DC | 12V DC | 9V DC |
| EnvironmentalOperating Temperature (min) | -20°C | -20°C | 0°C | -20°C | -20°C | -10°C |
| Operating Temperature (max) | 70°C | 70°C | 50°C | 70°C | 70°C | 65°C |
