From your concept to a product on the line
Panelmate customisation runs the whole way through: the first concept sketch, the electronics, the enclosure, the software, and the series production that follows.
Two things we are asked for most
Product development from concept
Our customisation service covers the entire development path — from the first conceptual design stage through to launch — so a device can be built around one industry or one application instead of around a catalogue.
High-speed fieldbus
Panelmate supports a broad range of bus protocols — EtherCAT, Modbus TCP, CANBUS, PROFINET, ADS and others — for seamless communication with the master PLC. The hardware holds its performance in demanding environments, integrates multiple peripherals and drives field devices, which is what removes the usual multi-vendor integration problem.
Why the work lands where it should
Our products and services are about integrating modern IT into existing production, control and visualisation processes. Panelmate has more than 13 years of experience and is an established high-technology enterprise in China.
Our own R&D team
A young, experienced engineering team that tracks where the industry is going and keeps the technology current, so the solutions we hand over are innovative and maintainable rather than merely finished.
A complete manufacturing plant

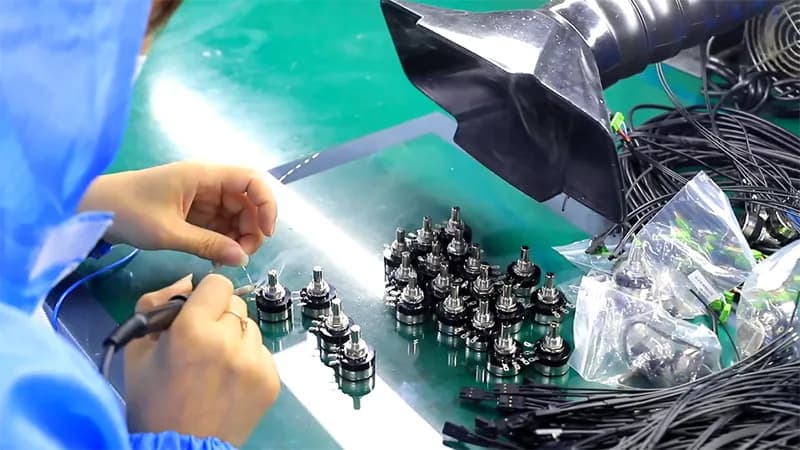

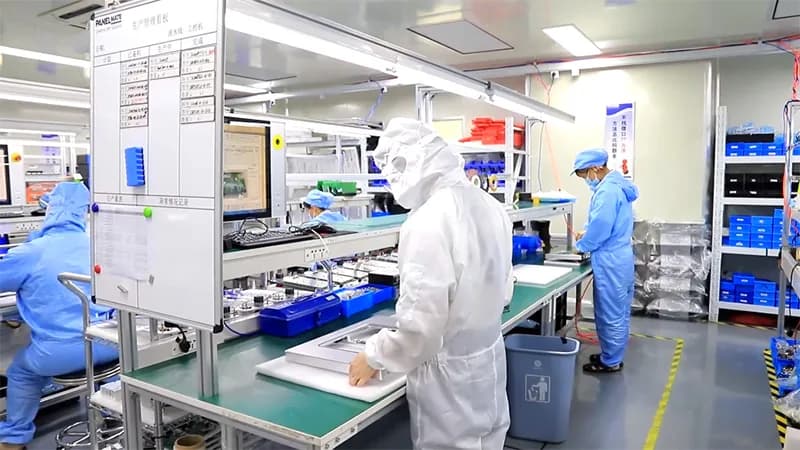

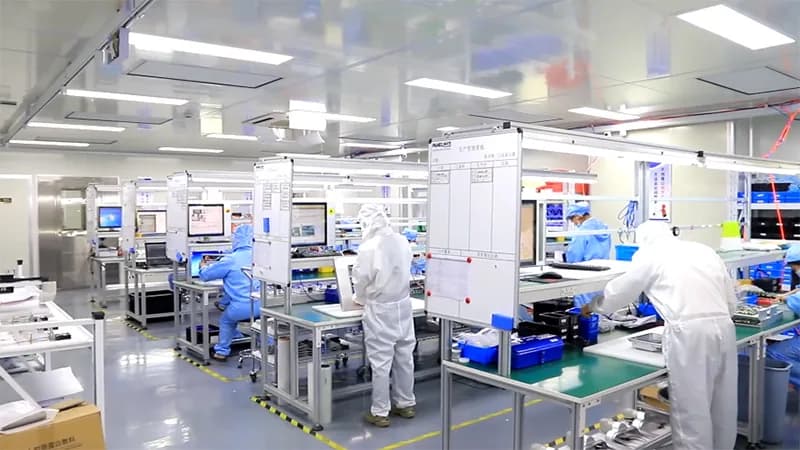

PCB and sheet-metal production, aluminium die casting, SMT, assembly, and full test and verification on one line — in our own plant in Shanghai, to standardised production plans and full quality control.
Full service support
Complete value-added service before and after the sale. A dedicated technical support team provides localised, high-quality help, so choosing Panelmate means choosing a partner rather than a supplier.
Dependable quality assurance
Quality first. The factory is ISO 9001 certified and runs a complete quality-control process where every procedure is followed to the letter and verified against a comprehensive compliance list.
The buses we speak
- EtherCAT
- Ethernet for Control Automation Technology: a high-performance real-time industrial Ethernet protocol developed by BECKHOFF and supported since 2003 by the ETG. It uses standard Ethernet physical layers and ordinary Ethernet cards, over twisted pair or optical fibre.
- Modbus TCP
- Developed by Modicon — now part of Schneider Electric — in 1979 and the de facto standard in industrial communication ever since. A simple message structure, several data types, error checking and compatibility with many transmission media make it the safe default.
- PROFINET
- An advanced industrial Ethernet protocol for automation. Real-Time Ethernet for automation communication: a complete network solution covering motion control, distributed automation, fail-safety and network security.
- CANBUS
- Controller Area Network Bus, a serial protocol used widely in automotive and industrial automation wherever timing matters. It handles complex electromagnetic environments while keeping data transmission accurate and stable.
How a custom build runs
Panelmate has produced a great deal of innovation in industrial panels and holds numerous core technologies and patents behind efficient, dependable solutions for many industries.
01Feasibility analysis
Against your customisation requirements we hold the preliminary discussions and requirement analysis: hardware architecture, software, and industrial process design.
02Electronic design
Products are designed for scalability from the start — most of our OBM standard products carry built-in expansion interfaces precisely so that customisation stays cheap.
03Mechanical design
Structural design and analysis, material selection and engineering practice give the enclosure the stability, durability and functionality the installation needs.
04Software design
Windows, Linux or Raspberry Pi, plus remote device monitoring and management.
05Industrial process design

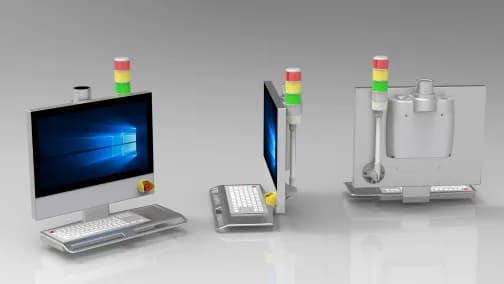

We supply the 3D model, and once the process is fully approved we produce high-resolution renders of the product and write the product specification book.
06Approval and production
With the plan fixed, a prototype is built and approved by you. Production and delivery times are confirmed, and series production of the customised product begins.
