Arm-Mounted Monitors · Part no.
IDD5X156

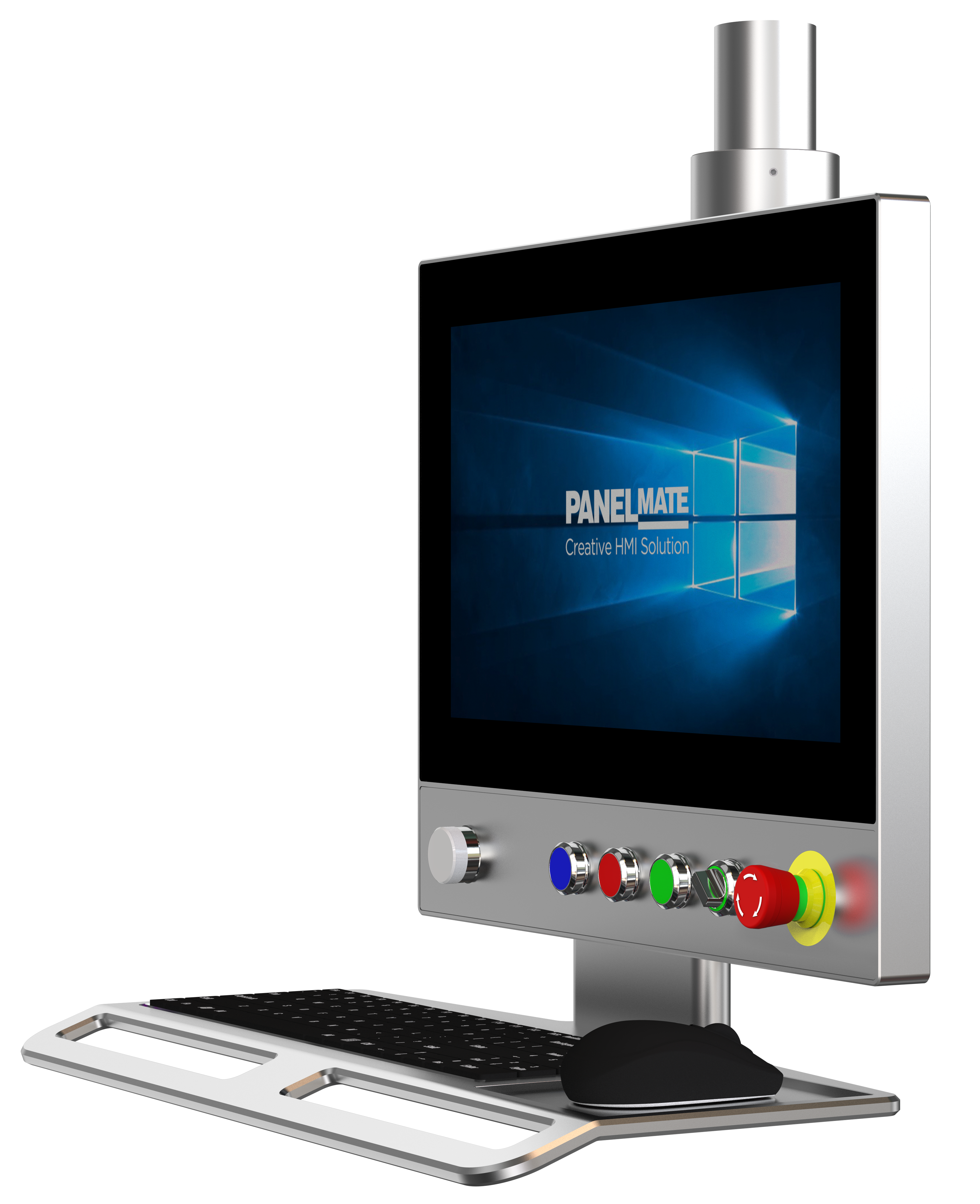

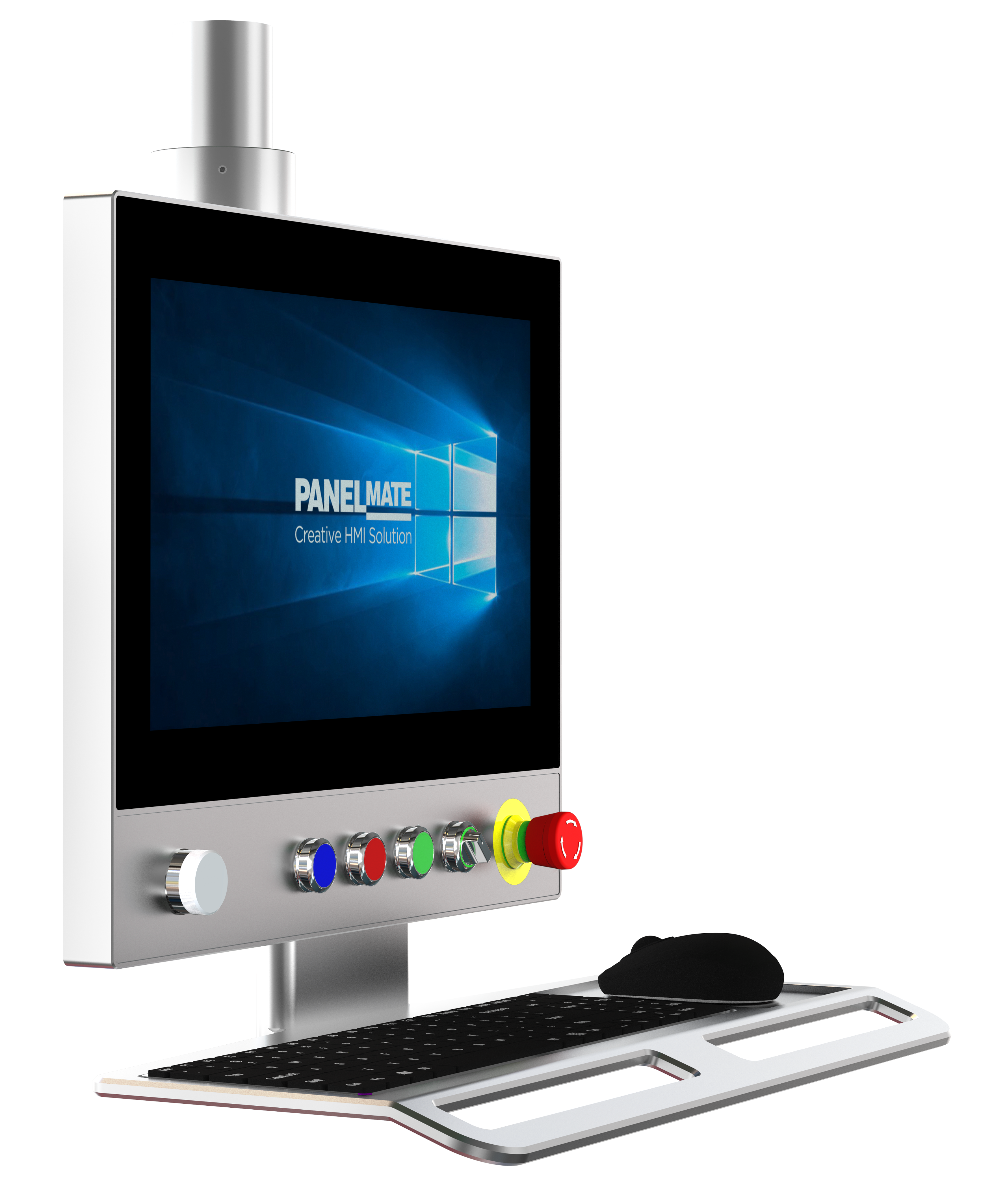

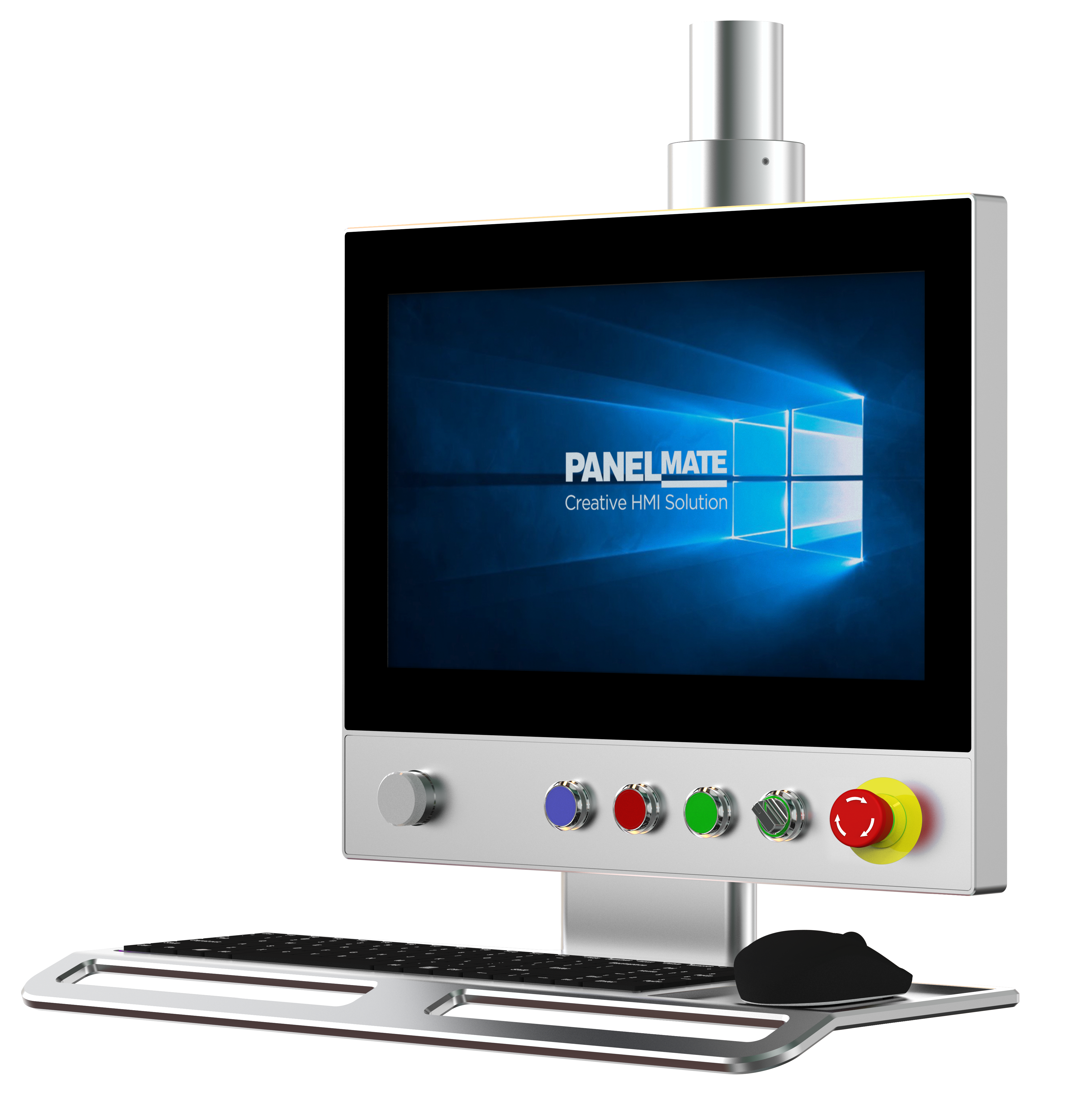

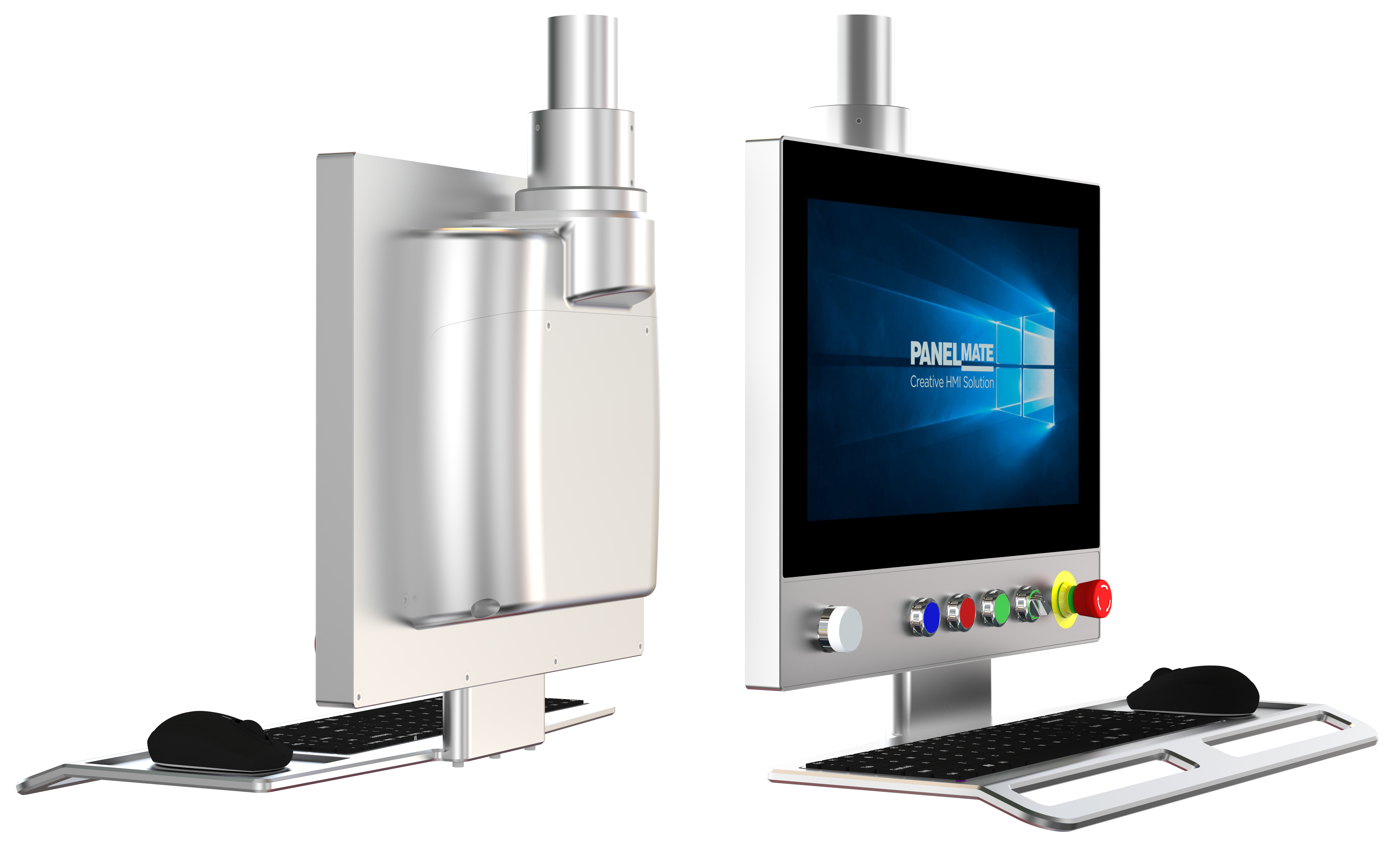

IDD5X156 — 15.6″ Arm-Mounted Operation Panel
15.6″ 1920 × 1080 arm-mounted operation panel with an IP65 front bezel.
The IDD5X156 is a 15.6″ arm-mounted operation panel with a 1920 × 1080 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 60 °C operating range. Power input is 12–36 V DC, drawing 43 W.
In production
Technical specifications
12 specs
| Product | |
|---|---|
| Product family | IDD5X |
| Display | |
| Display Size | 15.6inches |
| Resolution | 1920 × 1080 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 60°C |
| Ingress Protection | IP65 |
Across the series
6 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IDD5X150 | This modelIDD5X156 | IDD5X185 | IDD5X190 | IDD5X215 | IDD5X215-D |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 15inches | 15.6inches | 18.5inches | 19inches | 21.5inches | 21.5inches |
| Resolution | 1024 × 768 | 1920 × 1080 | 1920 × 1080 | 1280 × 1024 | 1920 × 1080 | — |
| Panel Type | TFT LCD | TFT LCD | TFT LCD | TFT LCD | TFT LCD | — |
| PowerInput Voltage (min) | 12V DC | 12V DC | 12V DC | 12V DC | 9V DC | 12V DC |
| EnvironmentalOperating Temperature (min) | -10°C | 0°C | 0°C | 0°C | 0°C | — |
| Operating Temperature (max) | 65°C | 60°C | 50°C | 50°C | 50°C | — |
