x86 Panel PCs · Part no.
IPC2X116

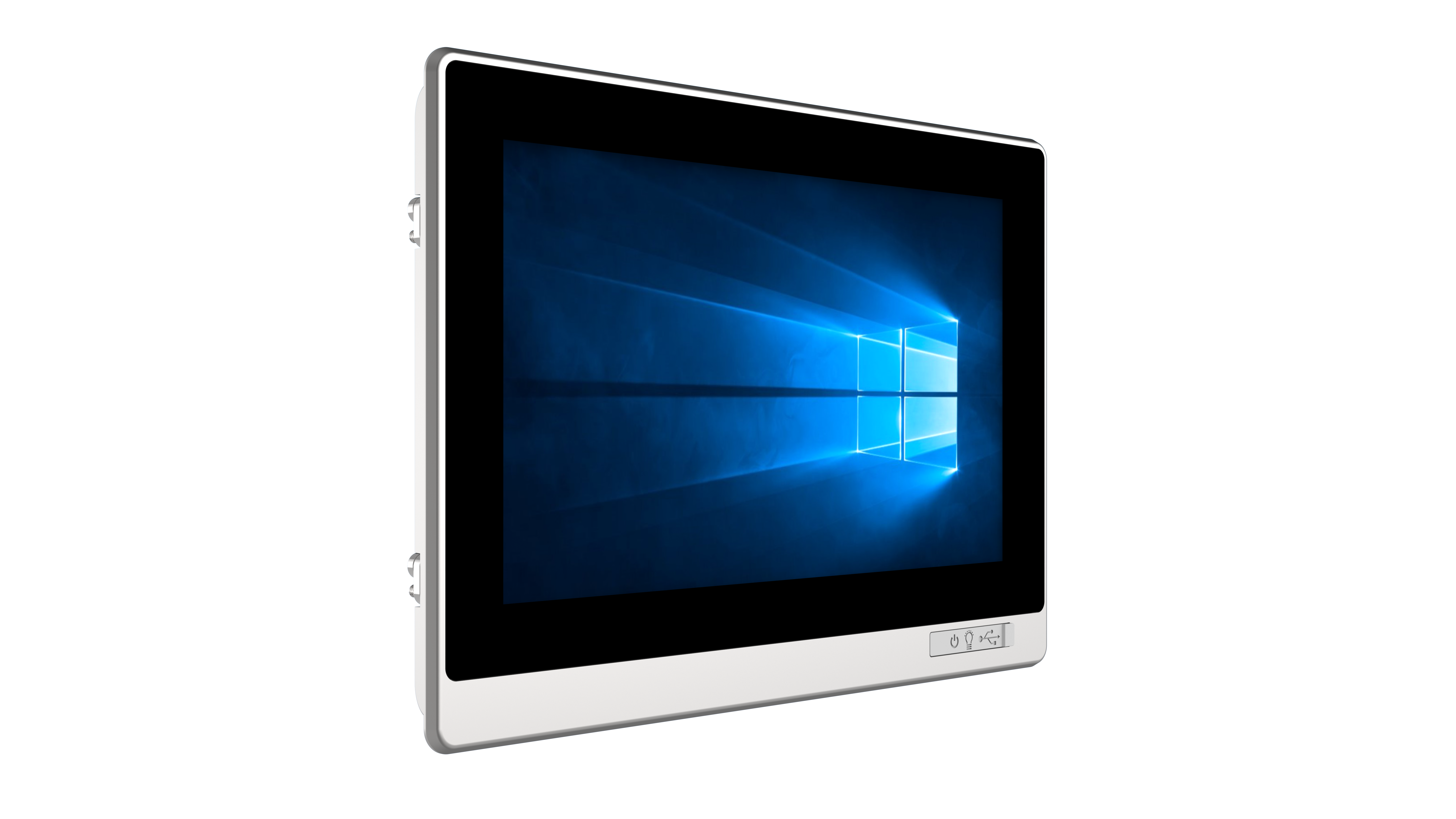

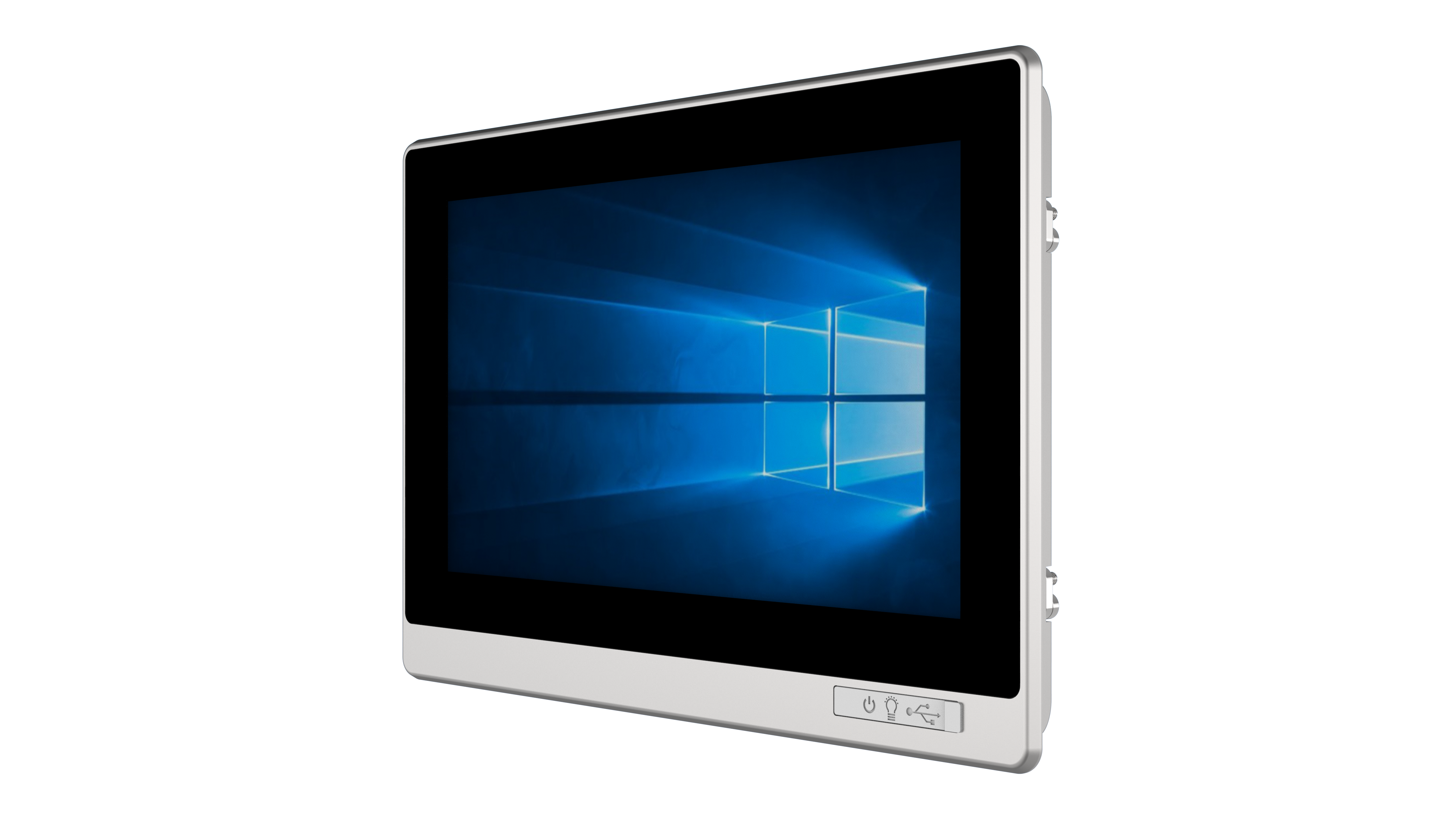

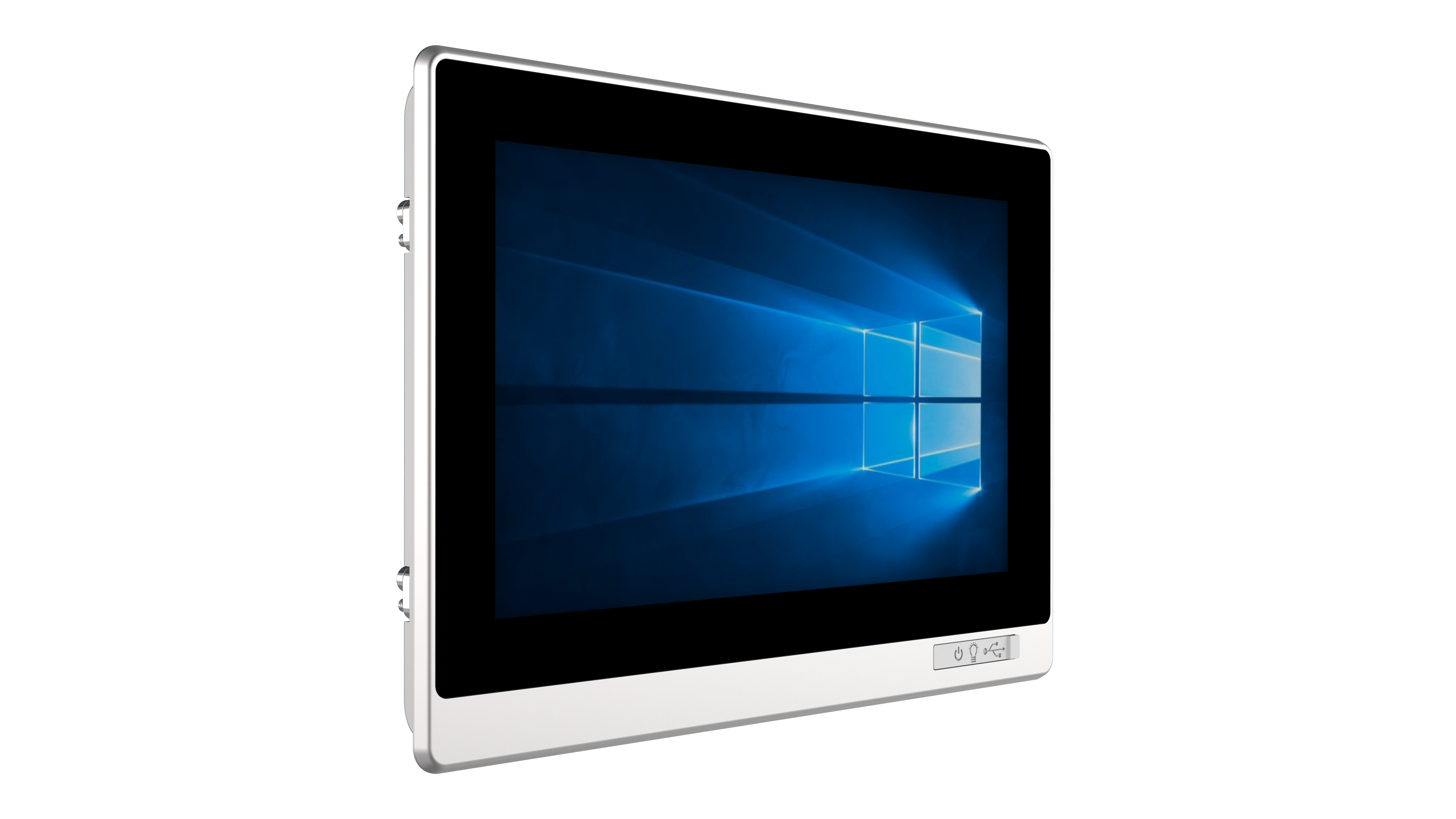

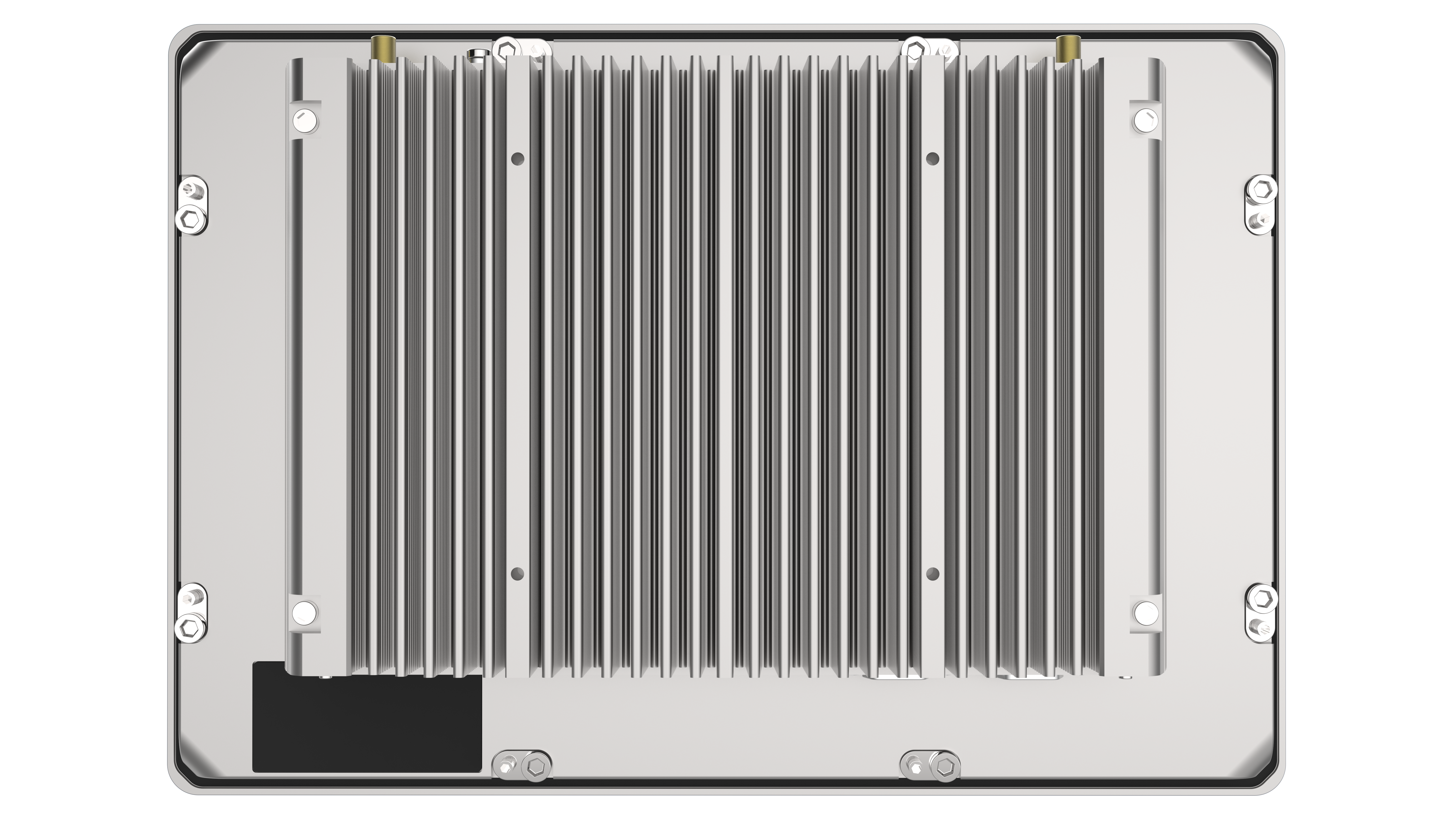

IPC2X116 — 11.6″ Industrial Panel PC
11.6″ 1920 × 1080 industrial panel pc with an IP65 front bezel.
The IPC2X116 is a 11.6″ industrial panel pc with a 1920 × 1080 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 50 °C operating range. Power input is 12–36 V DC, drawing 30 W. Mounting options are embedded. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
14 specs
| Product | |
|---|---|
| Product family | IPC2X |
| Display | |
| Display Size | 11.6inches |
| Resolution | 1920 × 1080 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Processing | |
|---|---|
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Power | |
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 50°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
Across the series
8 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IPC2X101 | IPC2X104 | This modelIPC2X116 | IPC2X121 | IPC2X122 | IPC2X150 |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 10.1inches | 10.4inches | 11.6inches | 12.1inches | 12.2inches | 15inches |
| Resolution | 1280 × 800 | 1024 × 768 | 1920 × 1080 | 1024 × 768 | 1280 × 800 | 1024 × 768 |
| PowerInput Voltage (min) | 12V DC | 9V DC | 12V DC | 12V DC | 12V DC | 12V DC |
| EnvironmentalOperating Temperature (min) | -20°C | -30°C | 0°C | -20°C | -20°C | -20°C |
| Operating Temperature (max) | 70°C | 80°C | 50°C | 70°C | 70°C | 70°C |
| MechanicalPanel mount | — | — | Yes | — | — | — |
| Wall mount | Yes | Yes | — | Yes | Yes | Yes |
| VESA mount | Yes | Yes | — | Yes | Yes | Yes |
