CNC Operator Panels · Part no.
PANEL6000-15

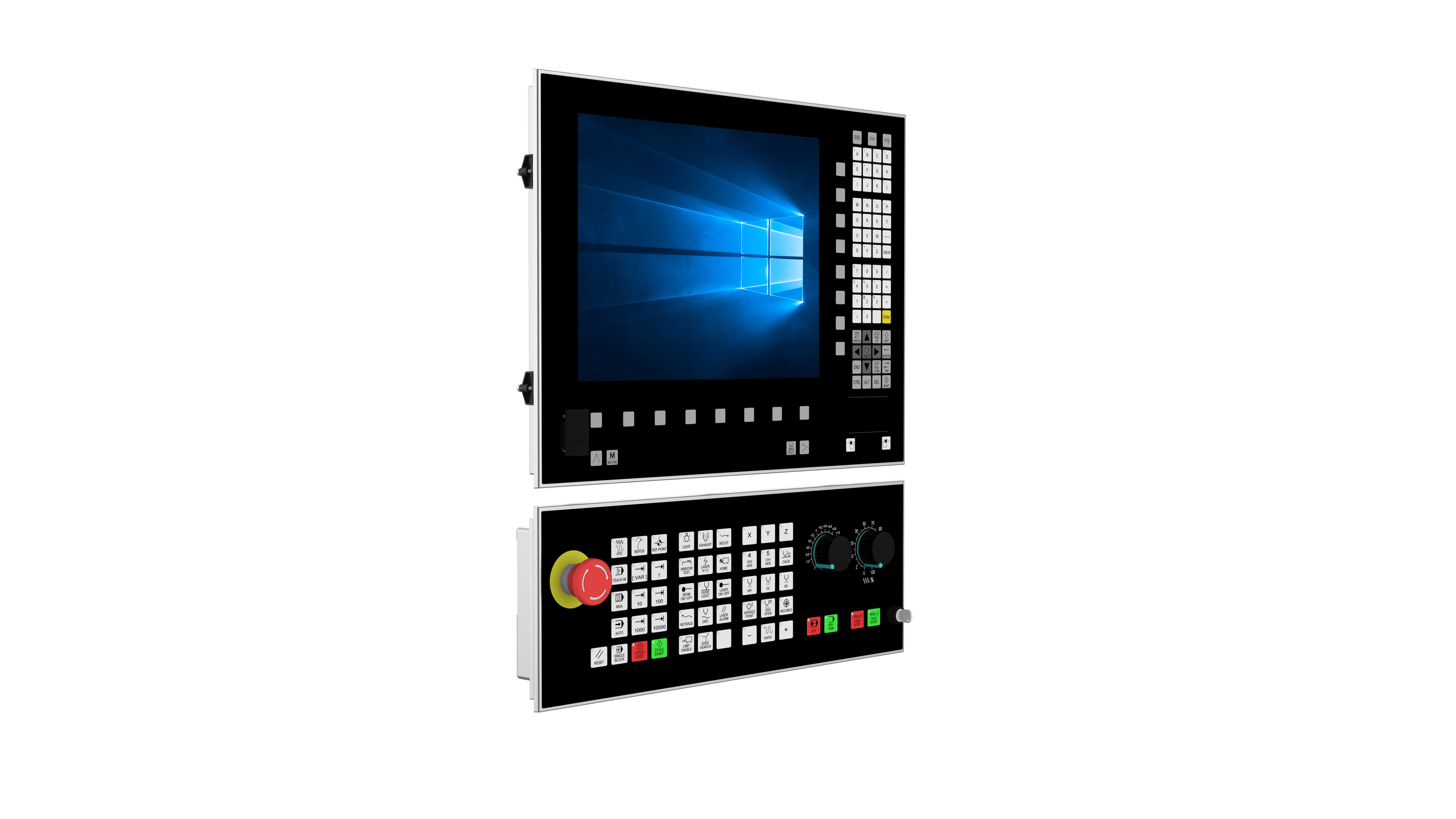

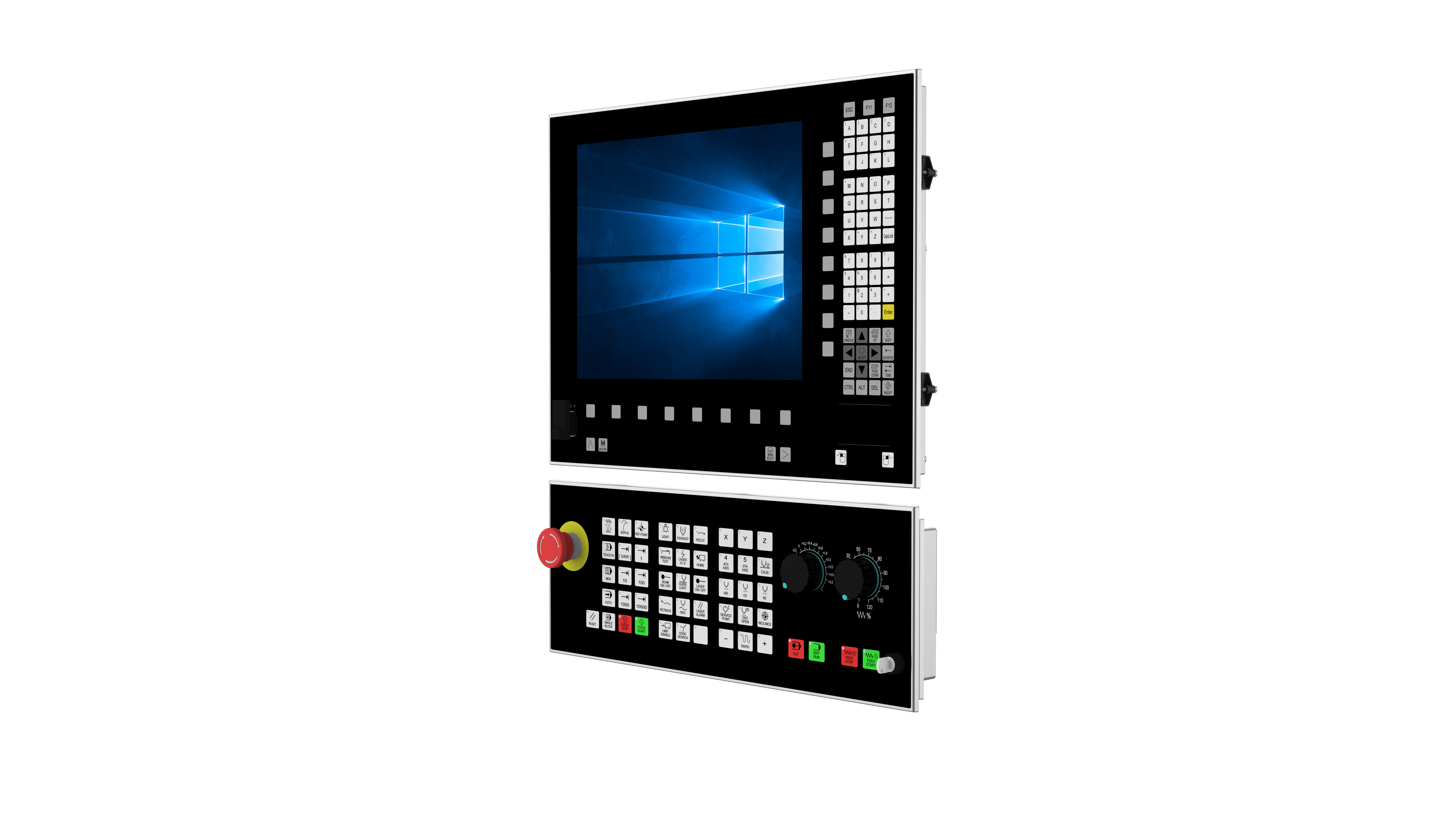

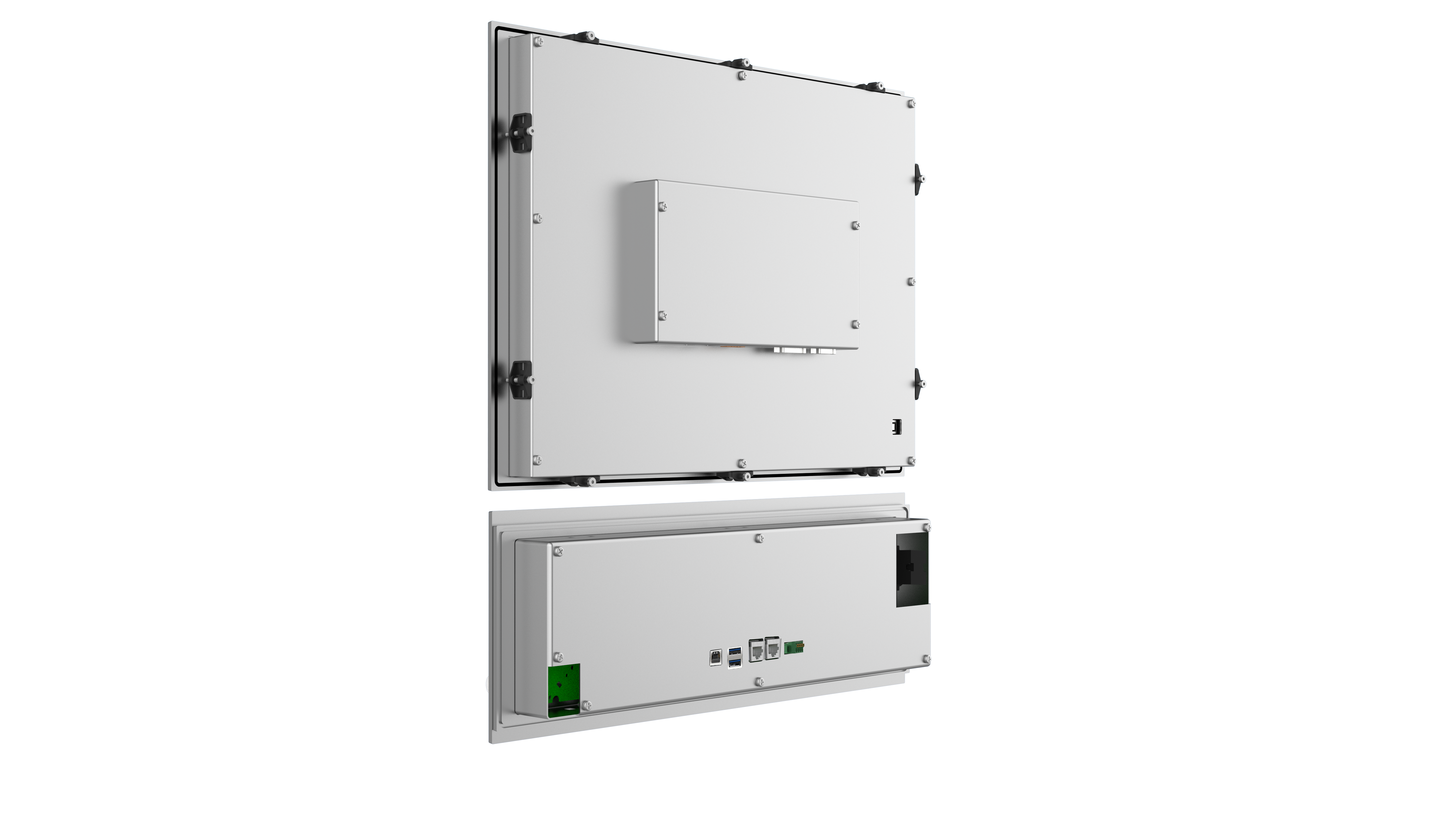

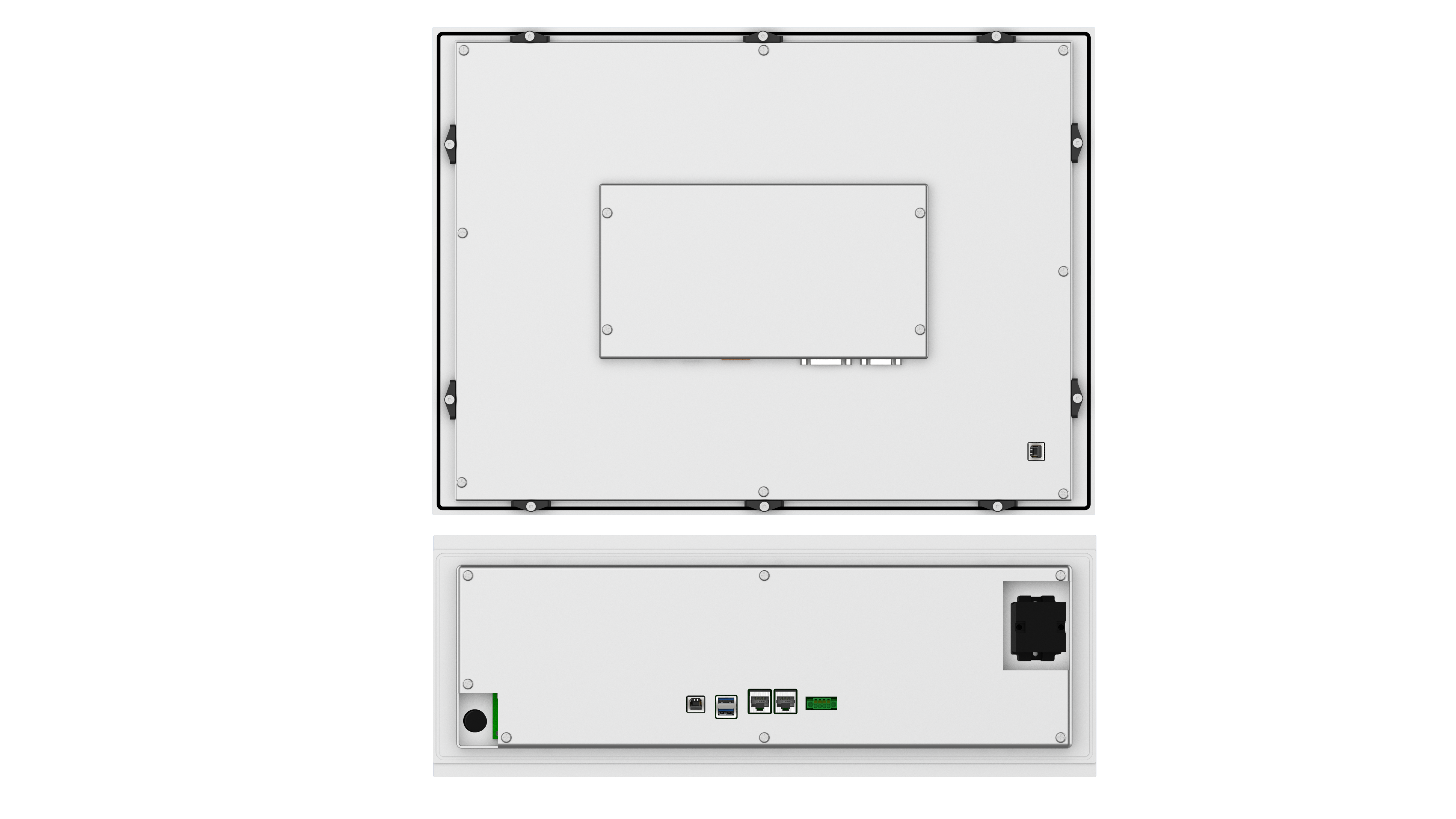

Panel6000-15 — 15.0″ CNC Operator Panel
15.0″ 1024 × 768 CNC Operator Panel with an IP65 front bezel.
The Panel6000-15 is a 15.0″ CNC Operator Panel with a 1024 × 768 TFT LCD panel. It is available with single-point resistive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a -10 to 60 °C operating range. Power input is 24 V DC. Mounting options are embedded.
In production
Technical specifications
11 specs
| Product | |
|---|---|
| Product family | PANEL60XX |
| Display | |
| Display Size | 15inches |
| Resolution | 1024 × 768 |
| Panel Type | TFT LCD |
| Resistive touch | Yes |
| Power | |
|---|---|
| Input Voltage (min) | 24V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | -10°C |
| Operating Temperature (max) | 60°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
