Industrial Automation PCs · Part no.
PC60XX

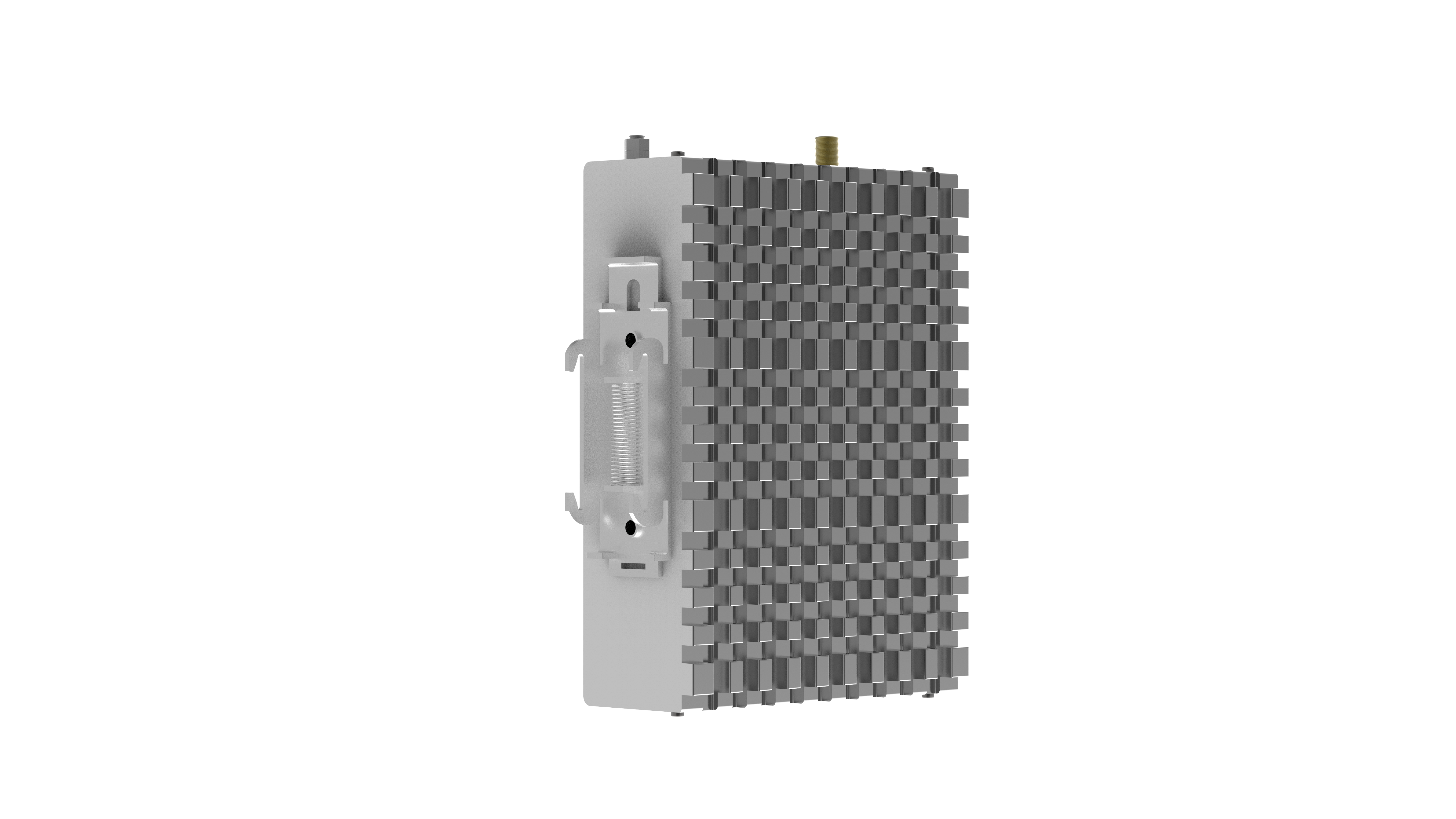

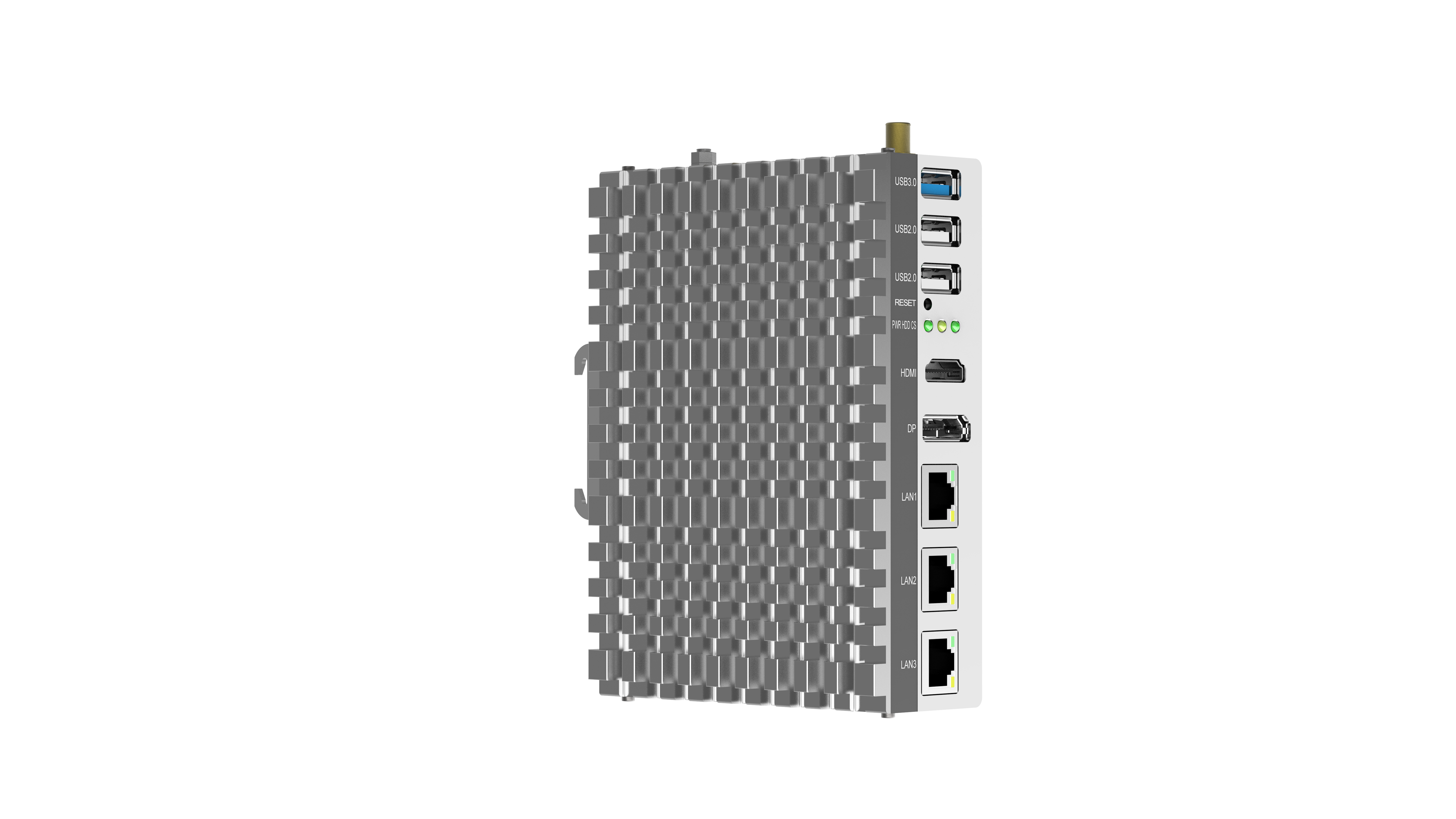

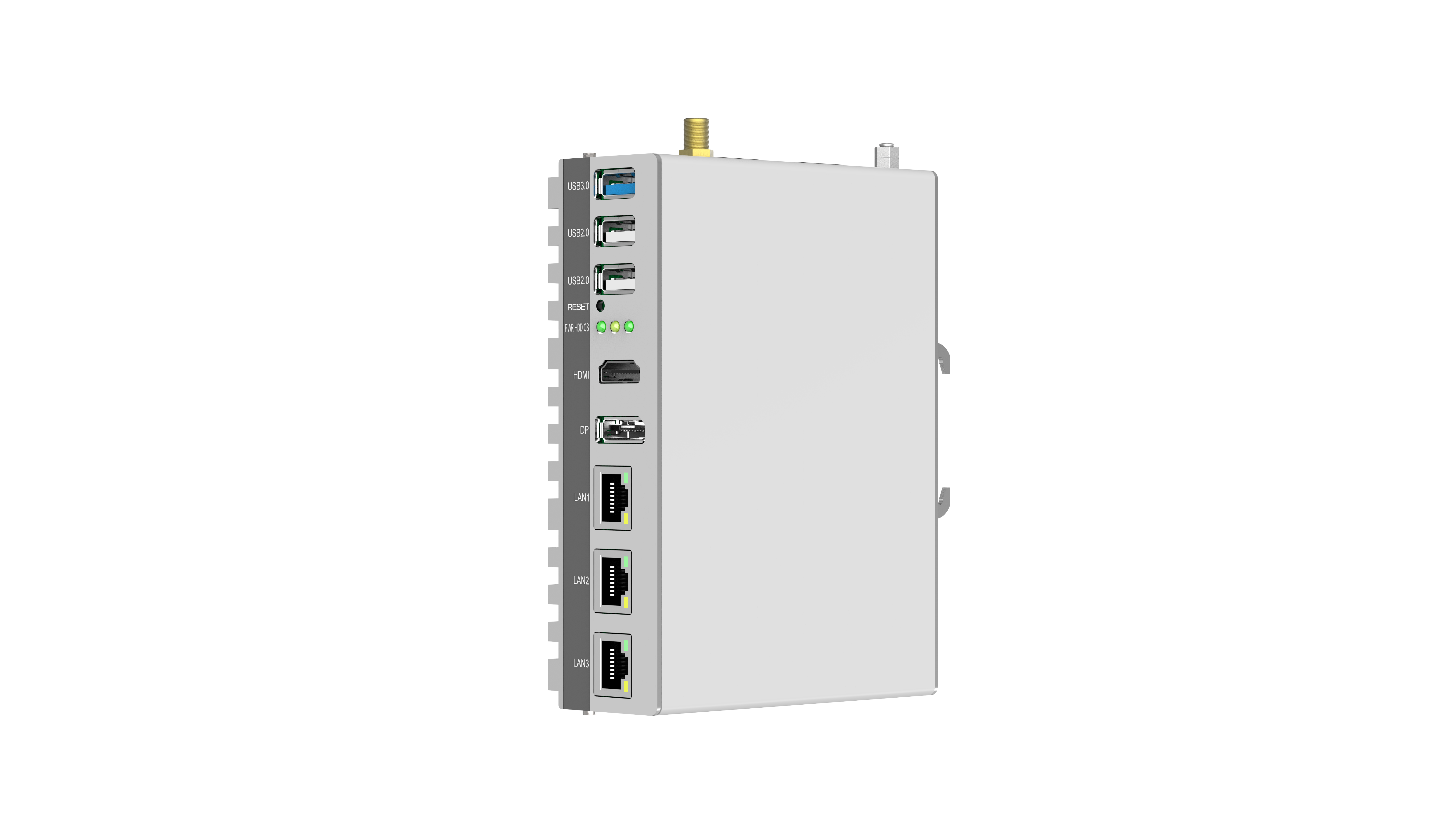

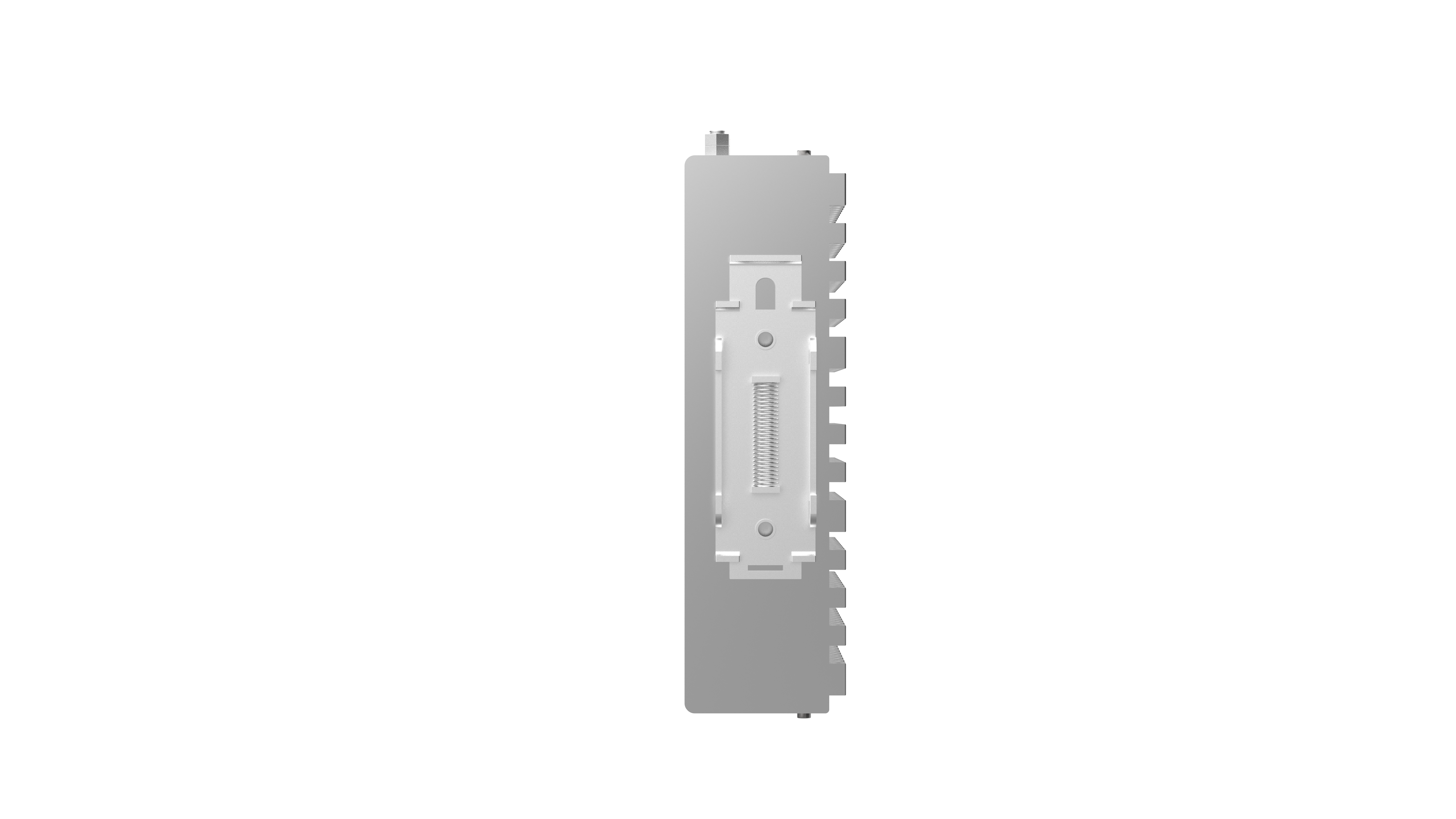

PC60XX — miniBOX Fanless Box PC
12–36 V DC miniBOX Fanless Box PC, rated -5 to 50 °C.
The PC60XX is a miniBOX Fanless Box PC. It has a -5 to 50 °C operating range. Power input is 12–36 V DC, drawing 10 W. It runs on a Rockchip RK3568 ARM processor.
In production
Technical specifications
7 specs
| Product | |
|---|---|
| Product family | PC60XX |
| Processing | |
| CPU | Rockchip RK3568 |
| Power | |
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
|---|---|
| Operating Temperature (min) | -5°C |
| Operating Temperature (max) | 50°C |
| Mechanical | |
| Fanless | Yes |
Across the series
3 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | PC6005 | PC6008 | This modelPC60XX |
|---|---|---|---|
| ProcessingCPU | — | Rockchip RK3568 | Rockchip RK3568 |
| EnvironmentalOperating Temperature (min) | 0°C | -5°C | -5°C |
| Operating Temperature (max) | 60°C | 50°C | 50°C |
