Industrial Automation PCs · Part no.
PC6970-PCI

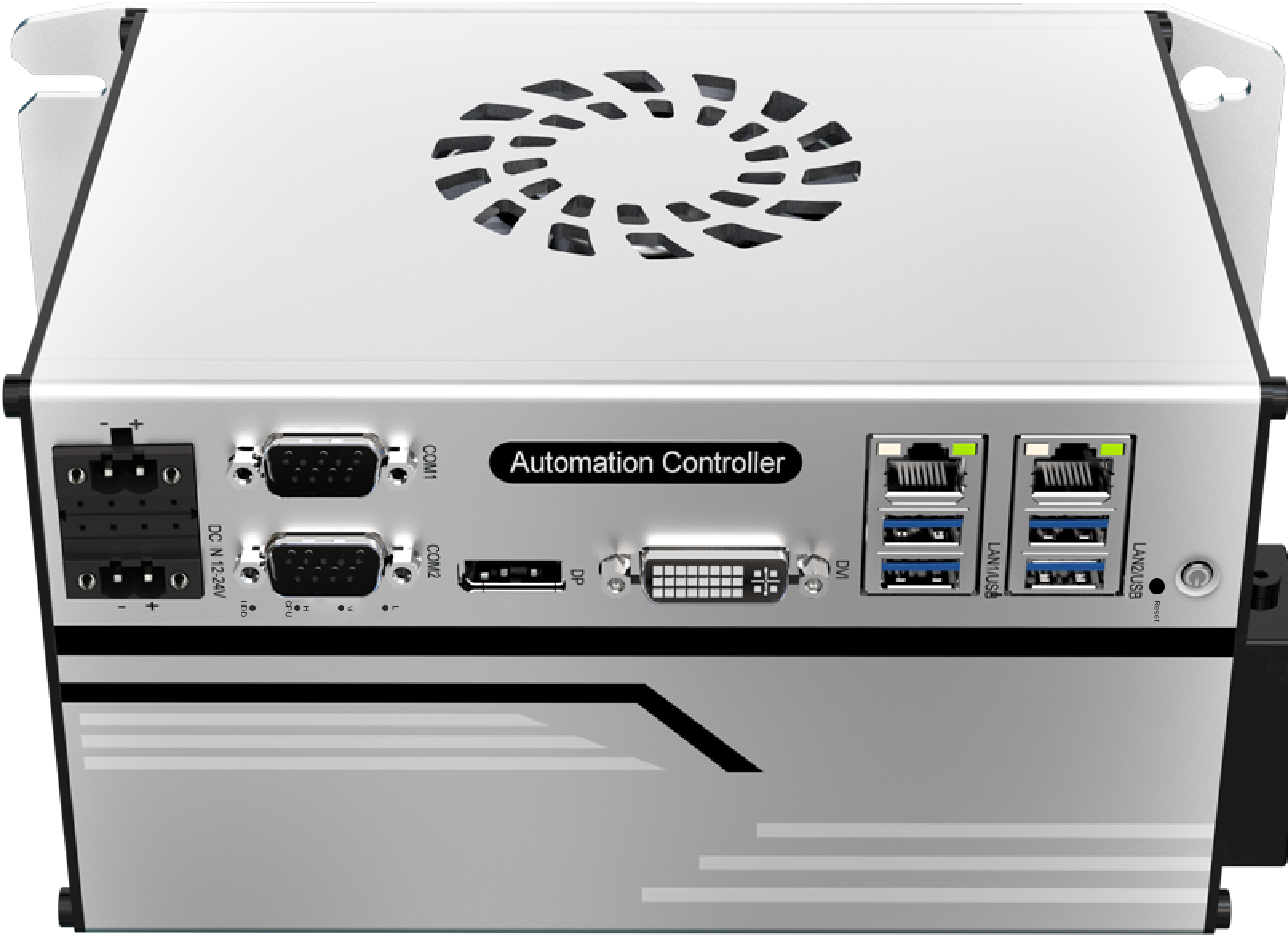

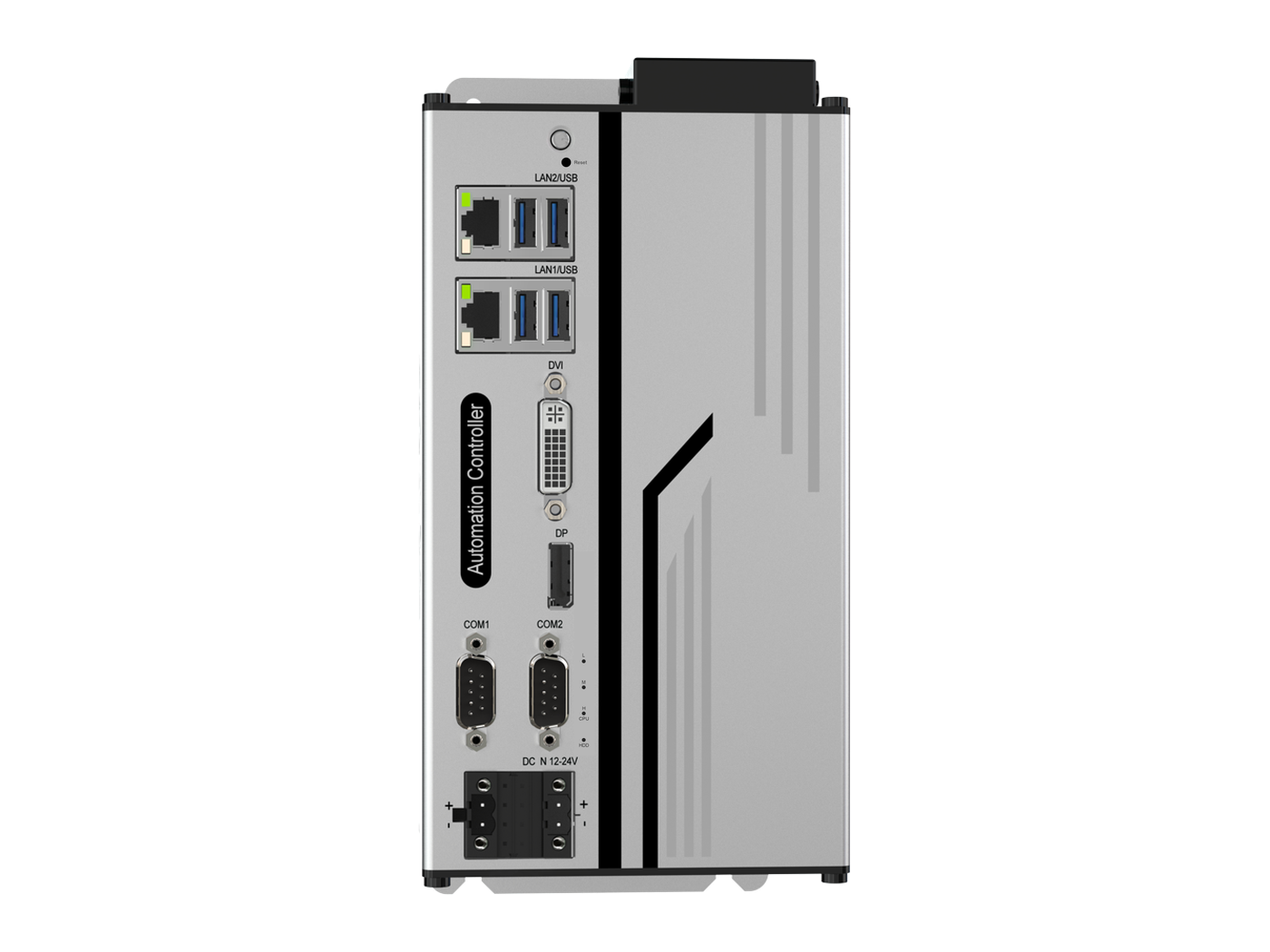

PC6970-PCI — Box PC
12–36 V DC Box PC, rated -20 to 60 °C.
The PC6970-PCI is a Box PC. It has a -20 to 60 °C operating range. Power input is 12–36 V DC, drawing 6970 W. Mounting options are wall-mounted. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
7 specs
| Product | |
|---|---|
| Product family | PC69XX |
| Processing | |
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Power | |
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
|---|---|
| Operating Temperature (min) | -20°C |
| Operating Temperature (max) | 60°C |
| Mechanical | |
| Wall mount | Yes |
