Raspberry Pi Panel PCs · Part no.
PI2X122

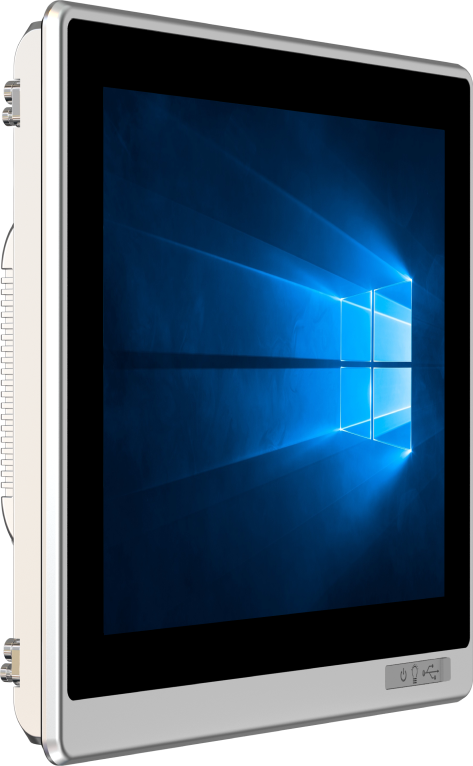

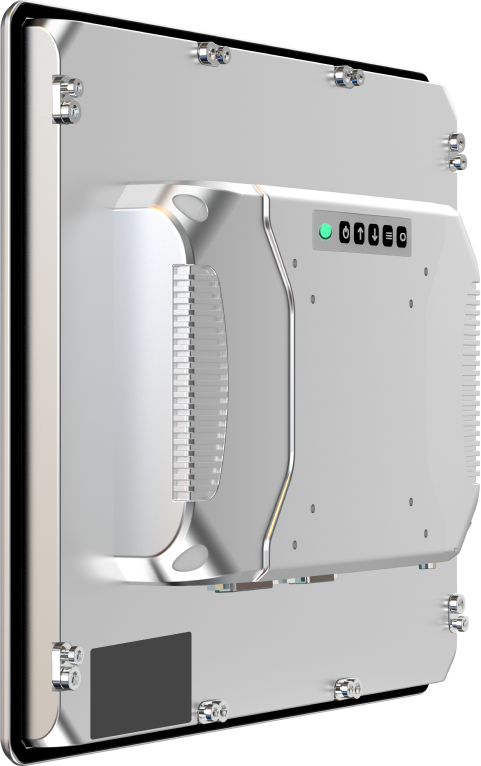

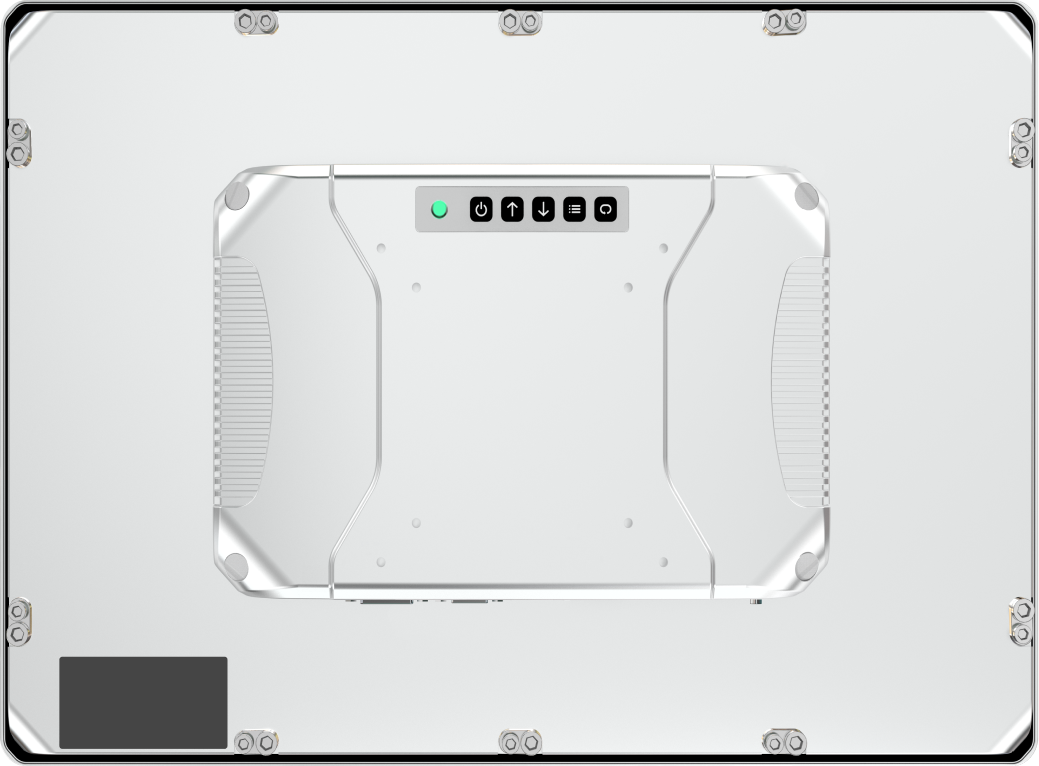

PI2X122 — 12.2″ Raspberry Pi Panel PC
12.2″ 1280 × 800 Raspberry Pi Panel PC with an IP65 front bezel.
The PI2X122 is a 12.2″ Raspberry Pi Panel PC with a 1280 × 800 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a -20 to 70 °C operating range. Power input is 24 V DC, drawing 19 W. Mounting options are embedded, wall-mounted, VESA, desktop. It is built around a Raspberry Pi compute module.
In production
Technical specifications
18 specs
| Product | |
|---|---|
| Product family | PI2X |
| Display | |
| Display Size | 12.2inches |
| Resolution | 1280 × 800 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Processing | |
| CPU | Raspberry Pi compute module |
| Storage | 8GB |
| Power | |
|---|---|
| Input Voltage (min) | 24V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | -20°C |
| Operating Temperature (max) | 70°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Wall mount | Yes |
| VESA mount | Yes |
| Desktop stand | Yes |
Across the series
8 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | PI2X116 | PI2X121 | This modelPI2X122 | PI2X150 | PI2X156 | PI2X170 |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 11.6inches | 12.1inches | 12.2inches | 15inches | 15.6inches | 17inches |
| Resolution | 1920 × 1080 | 1024 × 768 | 1280 × 800 | 1024 × 768 | 1366 × 768 | 1280 × 1024 |
| EnvironmentalOperating Temperature (min) | -20°C | -20°C | -20°C | -10°C | 0°C | -20°C |
| Operating Temperature (max) | 70°C | 70°C | 70°C | 65°C | 60°C | 60°C |
| MechanicalPanel mount | — | Yes | Yes | Yes | Yes | Yes |
| Wall mount | — | Yes | Yes | Yes | Yes | Yes |
| VESA mount | — | Yes | Yes | Yes | Yes | Yes |
| Desktop stand | — | Yes | Yes | Yes | Yes | Yes |
