CE · RoHS · ISO 9001
ARM / Android Panel PCs · Part no.
IAM2X170

IAM2X170 — 17.0″ ARM Panel PC

17.0″ 1280 × 1024 ARM Panel PC with an IP65 front bezel.

The IAM2X170 is a 17.0″ ARM Panel PC with a 1280 × 1024 TFT LCD panel. It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 50 °C operating range. Power input is 12–24 V DC. Mounting options are embedded, VESA. It runs on a Rockchip RK3568 ARM processor.
Request a quote Datasheet (PDF) (opens in a new tab)

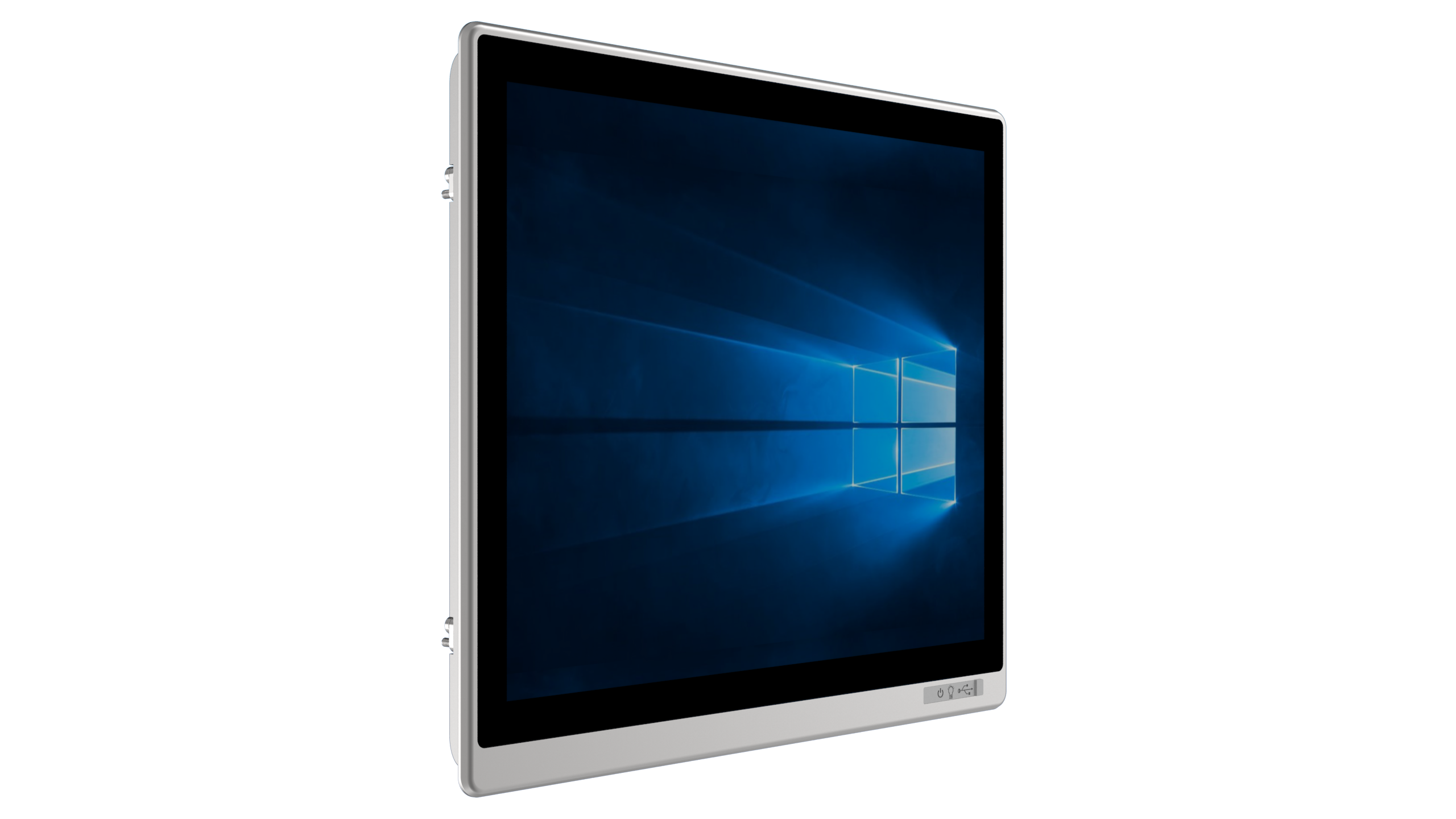

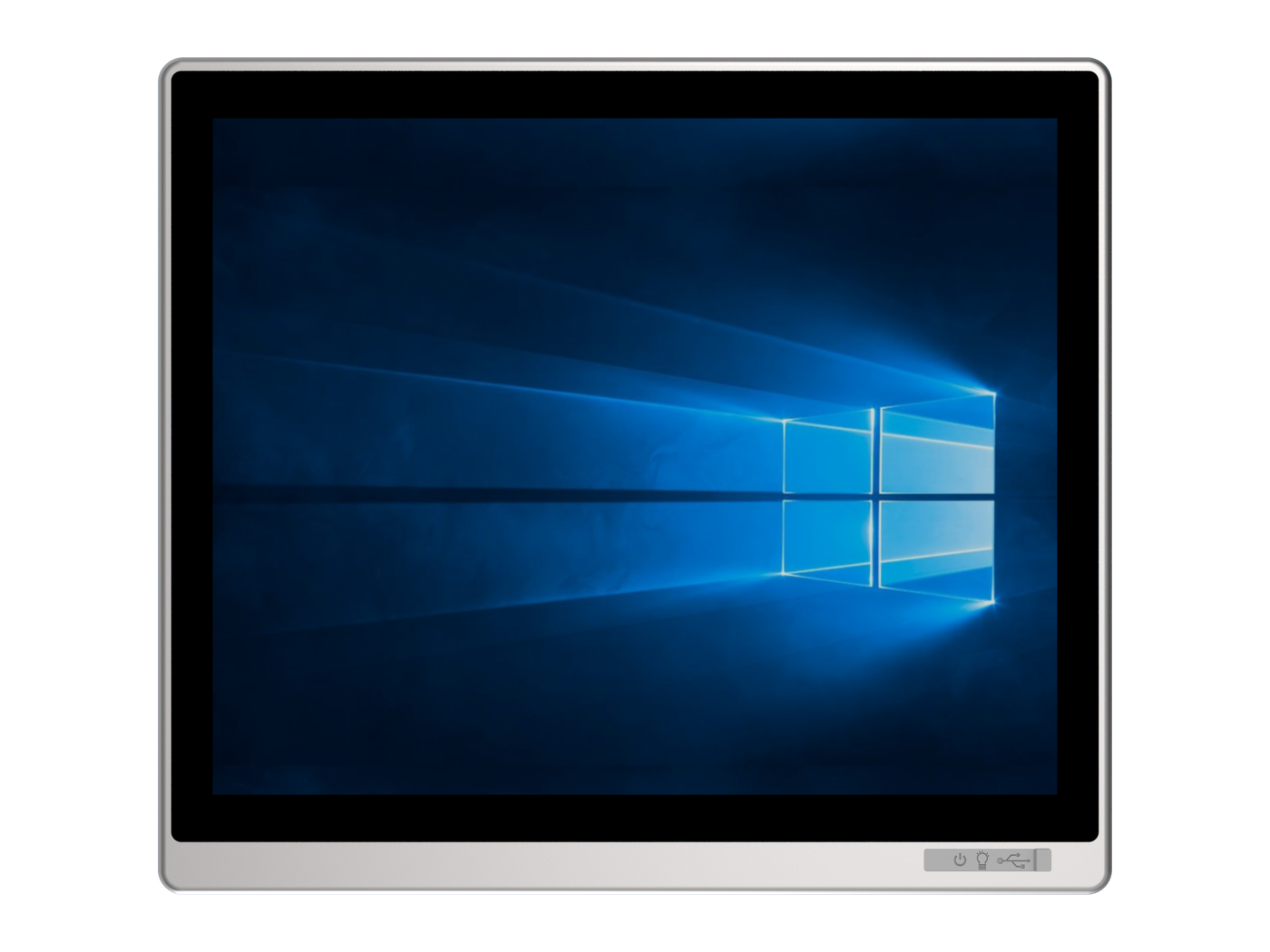

IAM2X170 front view
In production

Technical specifications

15 specs
Technical specifications
Product
Product familyIAM2X
Display
Display Size17inches
Resolution1280 × 1024
Panel TypeTFT LCD
Capacitive touchYes
Resistive touchYes
Processing
CPURockchip RK3568
Memory2GB
Technical specifications
Power
Input Voltage (min)12V DC
Input Voltage (max)24V DC
Environmental
Operating Temperature (min)0°C
Operating Temperature (max)50°C
Ingress ProtectionIP65
Mechanical
Panel mountYes
VESA mountYes

Across the series

6 differences

Only the specifications that differ across this product line. Everything the models share is on the full specification table above.

Across the series
SpecificationIAM2X122IAM2X150IAM2X156This modelIAM2X170IAM2X173IAM2X185
DisplayDisplay Size12.2inches15inches15.6inches17inches17.3inches18.5inches
Resolution1280 × 8001024 × 7681366 × 7681280 × 10241920 × 10801366 × 768
EnvironmentalOperating Temperature (min)-20°C-10°C0°C0°C0°C0°C
Operating Temperature (max)70°C65°C60°C50°C70°C50°C
MechanicalPanel mountYesYesYesYesYes—
Wall mount—————Yes
