Panel Mount Monitors · Part no.
IDD2X173

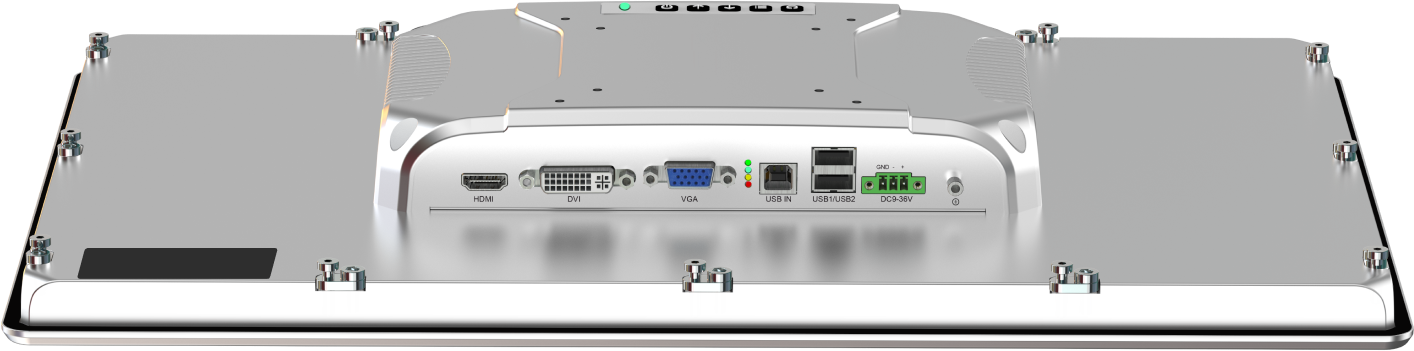

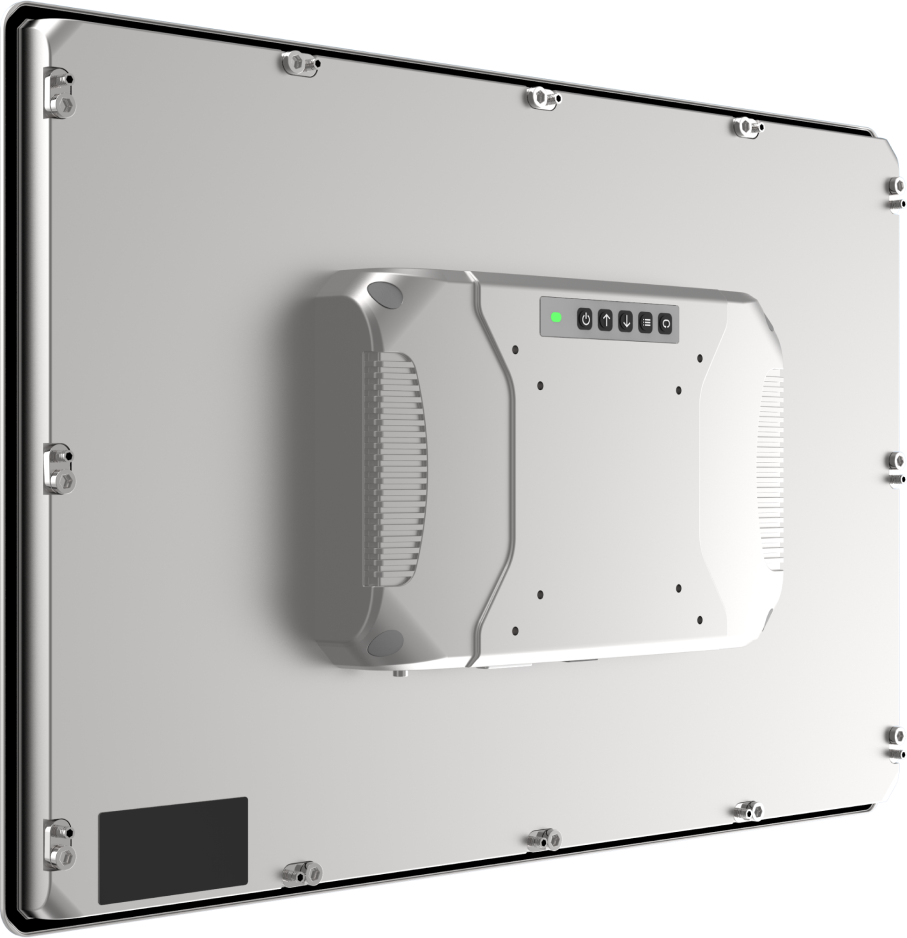

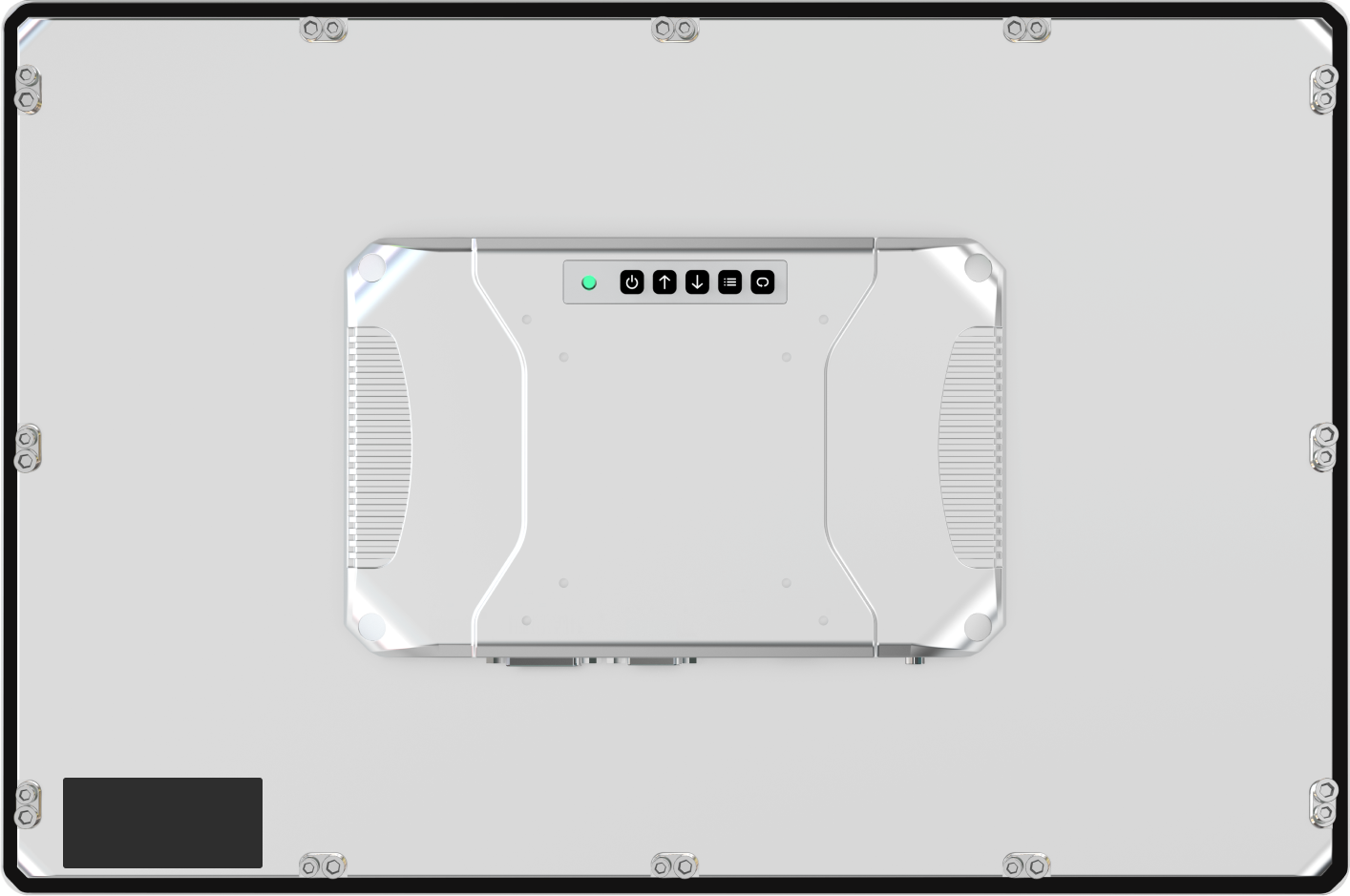

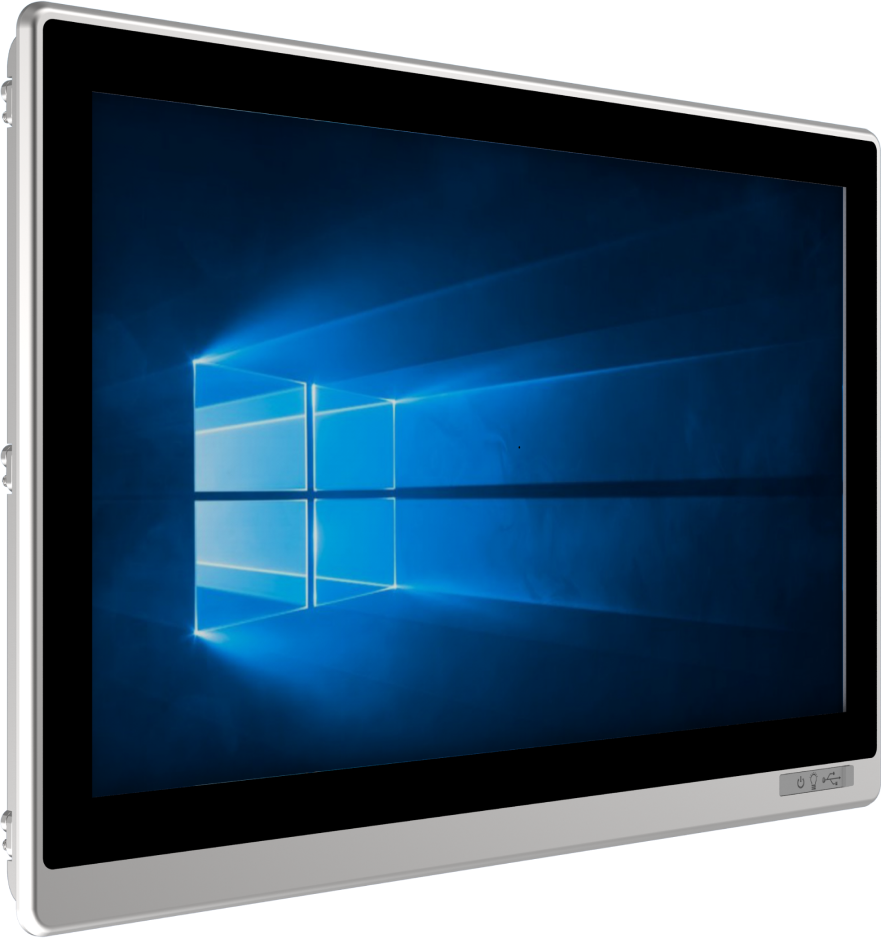

IDD2X173 — 17.3″ Industrial Monitor
17.3″ 1920 × 1080 industrial monitor with an IP65 front bezel.
The IDD2X173 is a 17.3″ industrial monitor with a 1920 × 1080 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 70 °C operating range. Power input is 12–36 V DC, drawing 14 W. Mounting options are embedded, wall-mounted, VESA, desktop.
In production
Technical specifications
16 specs
| Product | |
|---|---|
| Product family | IDD2X |
| Display | |
| Display Size | 17.3inches |
| Resolution | 1920 × 1080 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 70°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Wall mount | Yes |
| VESA mount | Yes |
| Desktop stand | Yes |
Across the series
6 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IDD2X150 | IDD2X156 | IDD2X170 | This modelIDD2X173 | IDD2X185 | IDD2X190 |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 15inches | 15.6inches | 17inches | 17.3inches | 18.5inches | 19inches |
| Resolution | 1024 × 768 | 1366 × 768 | 1280 × 1024 | 1920 × 1080 | 1366 × 768 | 1280 × 1024 |
| PowerInput Voltage (min) | 9V DC | 12V DC | 9V DC | 12V DC | 12V DC | 12V DC |
| EnvironmentalOperating Temperature (min) | -10°C | 0°C | 0°C | 0°C | 0°C | 0°C |
| Operating Temperature (max) | 65°C | 60°C | 50°C | 70°C | 50°C | 50°C |
| MechanicalWall mount | Yes | — | Yes | Yes | — | Yes |
