Arm-Mounted Monitors · Part no.
IDD4X215L-5K

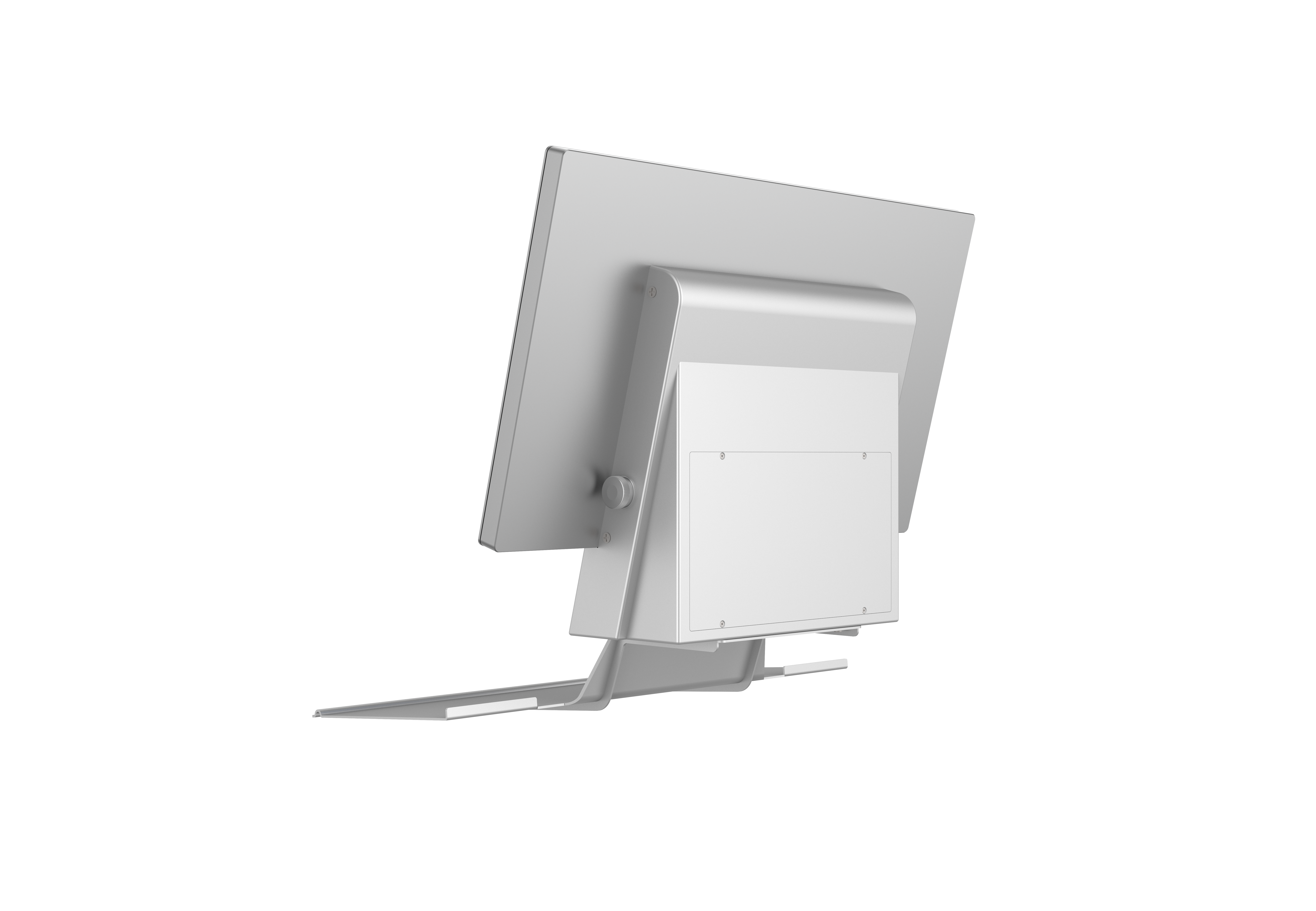

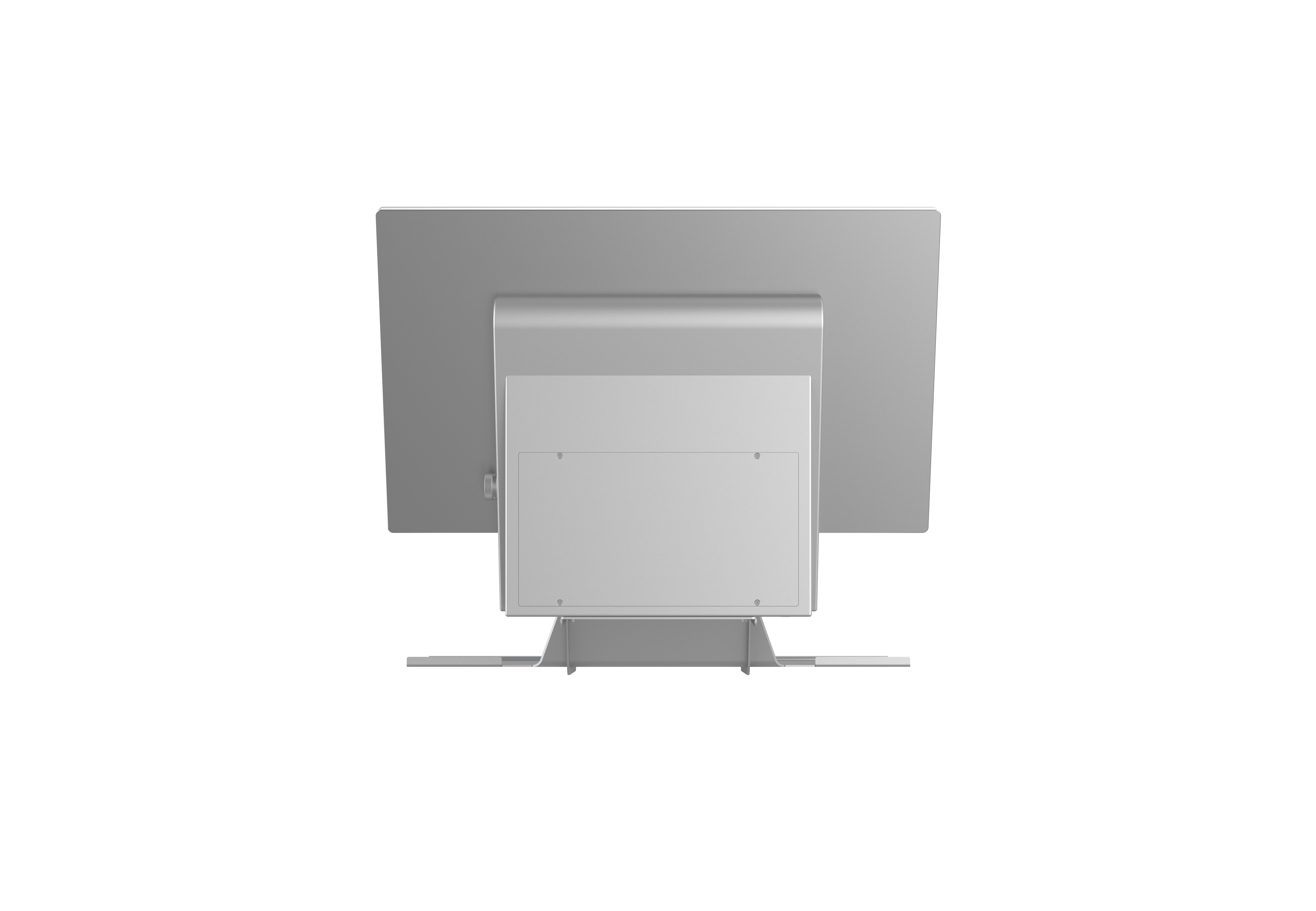

IDD4X215L-5K — 21.5″ Economical Arm-Mounted Monitor
21.5″ 1920 × 1080 Economical Arm-Mounted Monitor with an IP65 front bezel.
The IDD4X215L-5K is a 21.5″ Economical Arm-Mounted Monitor with a 1920 × 1080 TFT LCD panel. It is available with single-point resistive, 10-point capacitive or non-touch front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 50 °C operating range. Power input is 12–36 V DC, drawing 20 W.
In production
Technical specifications
12 specs
| Product | |
|---|---|
| Product family | IDD4X |
| Display | |
| Display Size | 21.5inches |
| Resolution | 1920 × 1080 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Non-touch option | Yes |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 36V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 50°C |
| Ingress Protection | IP65 |
Across the series
6 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | This modelIDD4X215L-5K | IDD4X215LP-5K |
|---|---|---|
| DisplayResolution | 1920 × 1080 | — |
| Panel Type | TFT LCD | — |
| Capacitive touch | Yes | — |
| Resistive touch | Yes | — |
| EnvironmentalOperating Temperature (min) | 0°C | — |
| Operating Temperature (max) | 50°C | — |
