x86 Panel PCs · Part no.
IPC2X170D

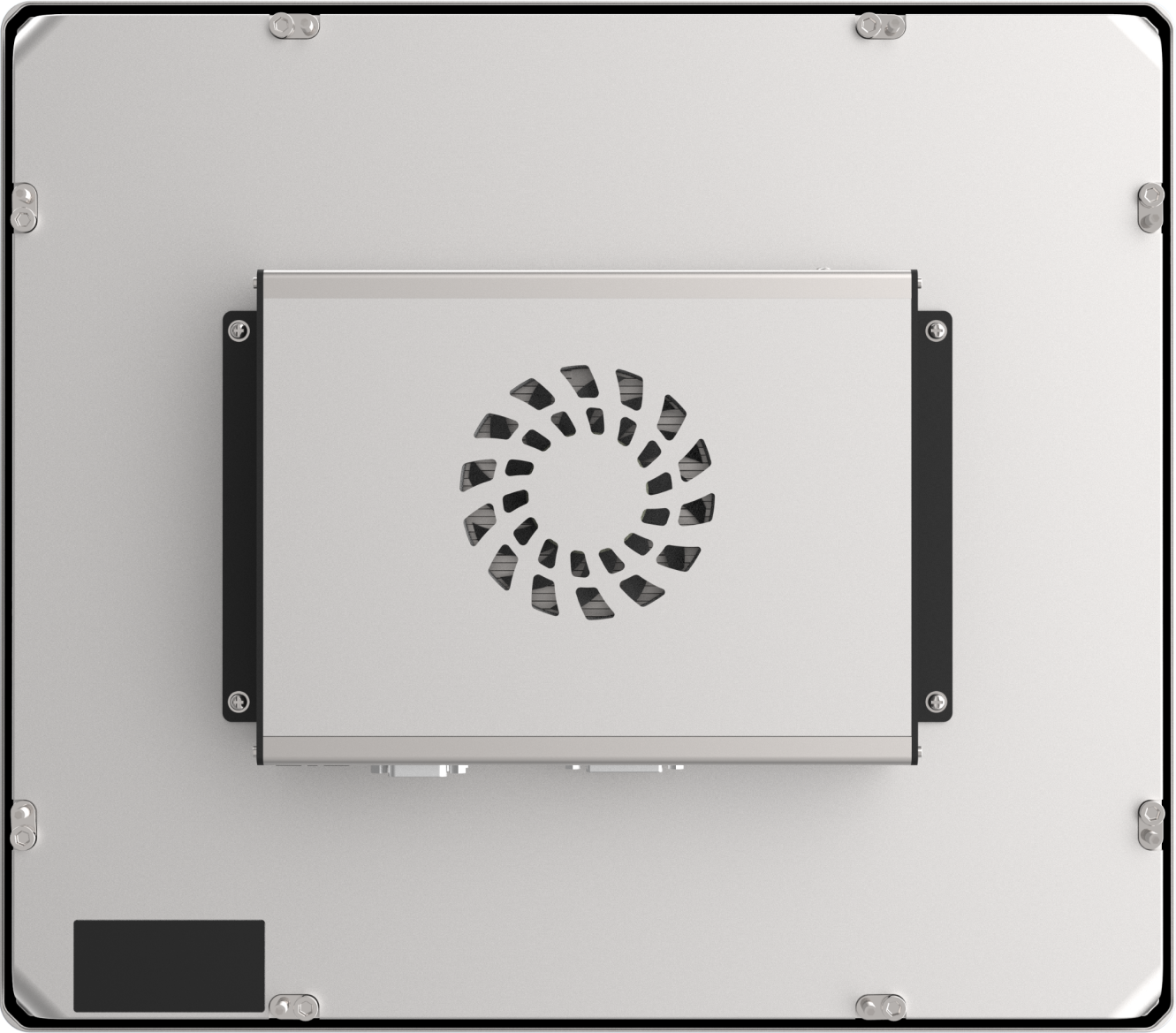

IPC2X170D — 17.0″ Industrial Panel PC (D Series)
17.0″ 1280 × 1024 Industrial Panel PC (D Series) with an IP65 front bezel.
The IPC2X170D is a 17.0″ Industrial Panel PC (D Series) with a 1280 × 1024 TFT LCD panel. It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 50 °C operating range. Power input is 12–24 V DC, drawing 130 W. Mounting options are desktop. Processor options cover the Intel Celeron J6412 and Intel Core i3/i5/i7 families.
In production
Technical specifications
15 specs
| Product | |
|---|---|
| Product family | IPC2X |
| Display | |
| Display Size | 17inches |
| Resolution | 1280 × 1024 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Processing | |
| CPU | Intel Celeron J6412 / Intel Core i3-i7 |
| Memory | 4GB |
| Storage | 128GB |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 50°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Desktop stand | Yes |
Across the series
9 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IPC2X122D | IPC2X150D | IPC2X156D | This modelIPC2X170D | IPC2X185D | IPC2X190D |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 12.2inches | 15inches | 15.6inches | 17inches | 18.5inches | 19inches |
| Resolution | — | 1024 × 768 | — | 1280 × 1024 | — | 1280 × 1024 |
| Panel Type | — | TFT LCD | TFT LCD | TFT LCD | TFT LCD | TFT LCD |
| ProcessingMemory | — | 4GB | 4GB | 4GB | 4GB | 4GB |
| Storage | — | 8GB | 8GB | 128GB | — | 128GB |
| EnvironmentalOperating Temperature (min) | 0°C | -10°C | — | 0°C | 0°C | 0°C |
| Operating Temperature (max) | 70°C | 65°C | — | 50°C | 70°C | 50°C |
| MechanicalPanel mount | — | Yes | Yes | — | Yes | — |
| Desktop stand | — | Yes | Yes | Yes | Yes | Yes |
