ARM / Android Panel PCs · Part no.
IAM2X240

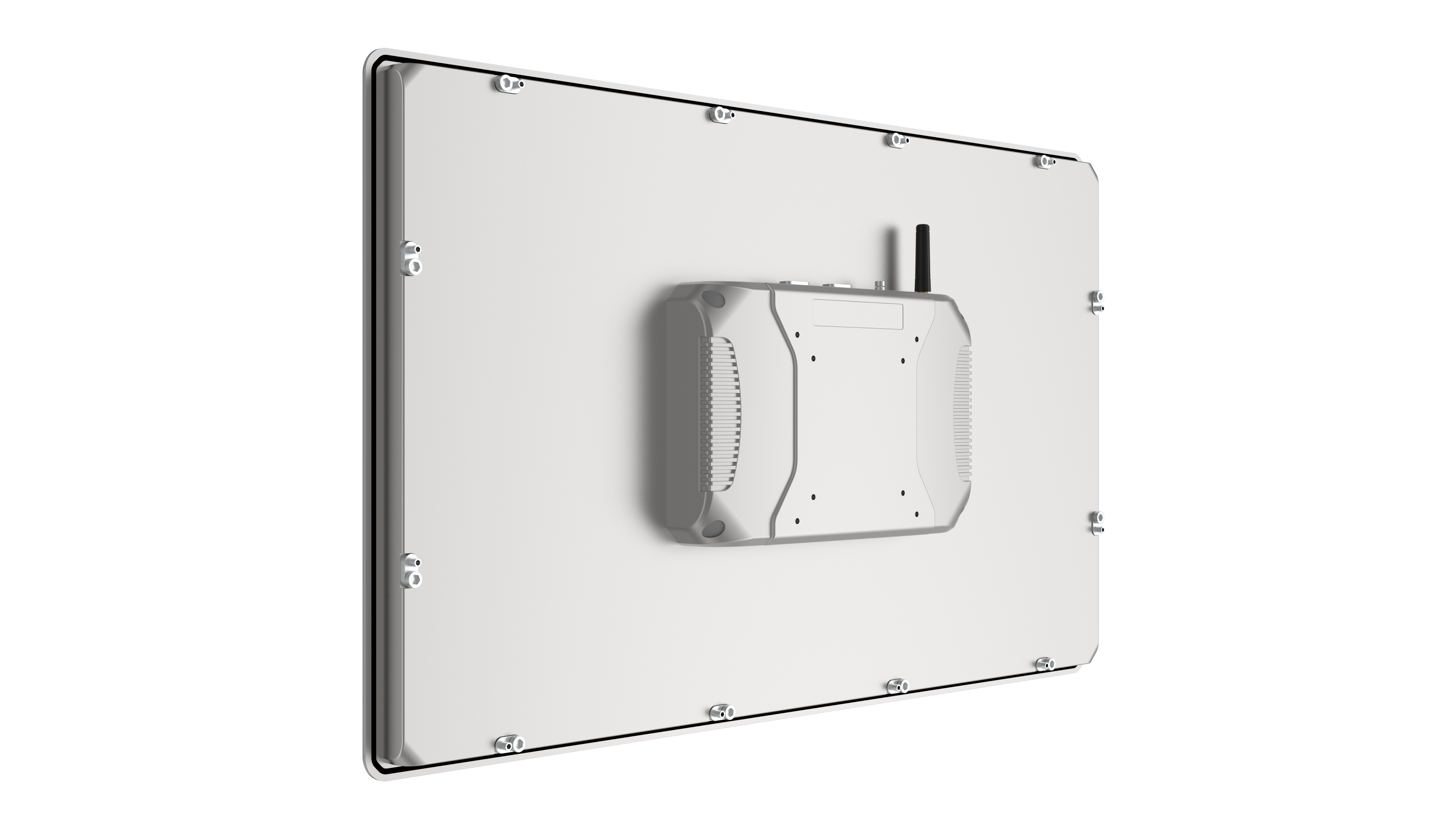

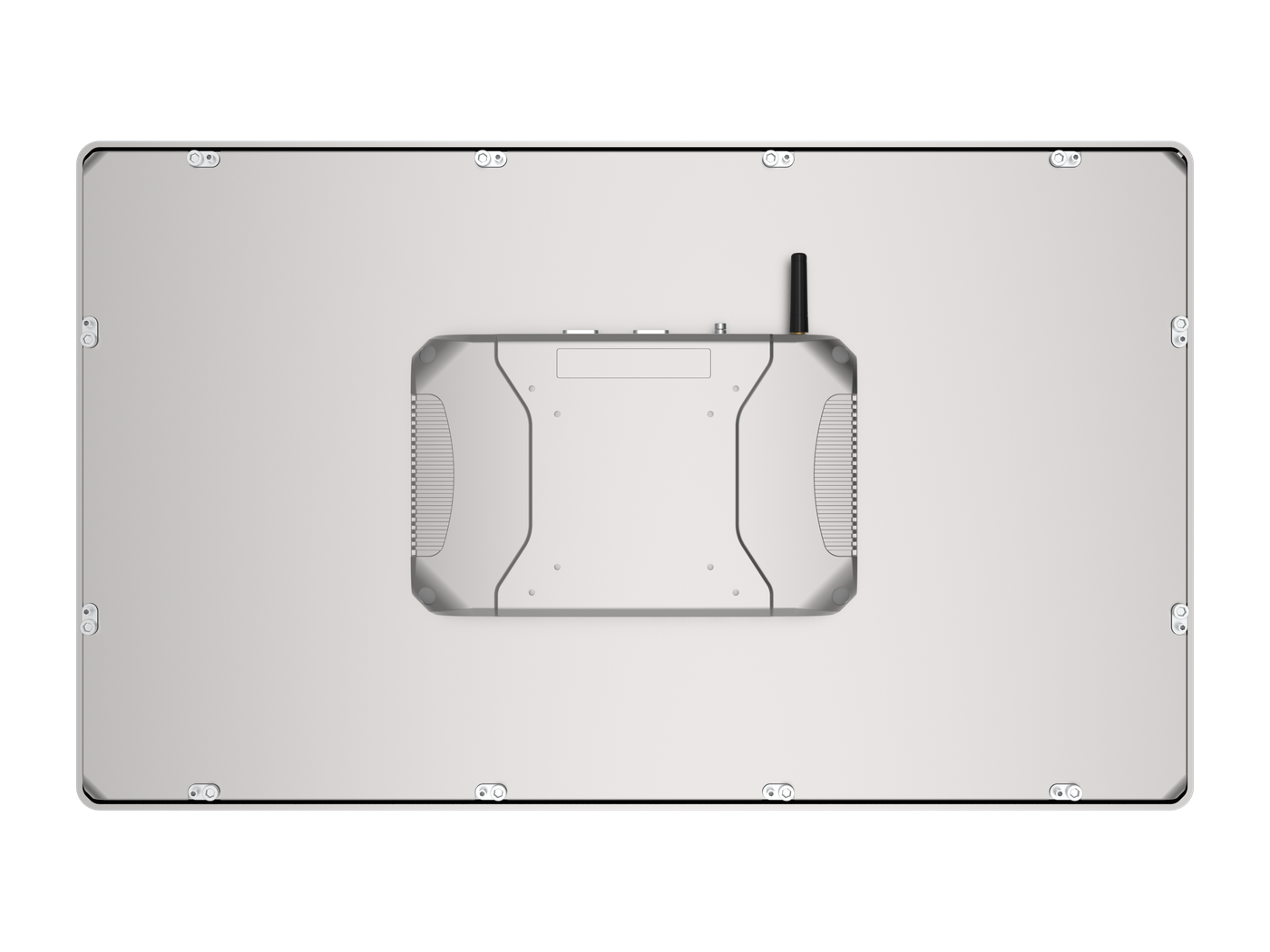

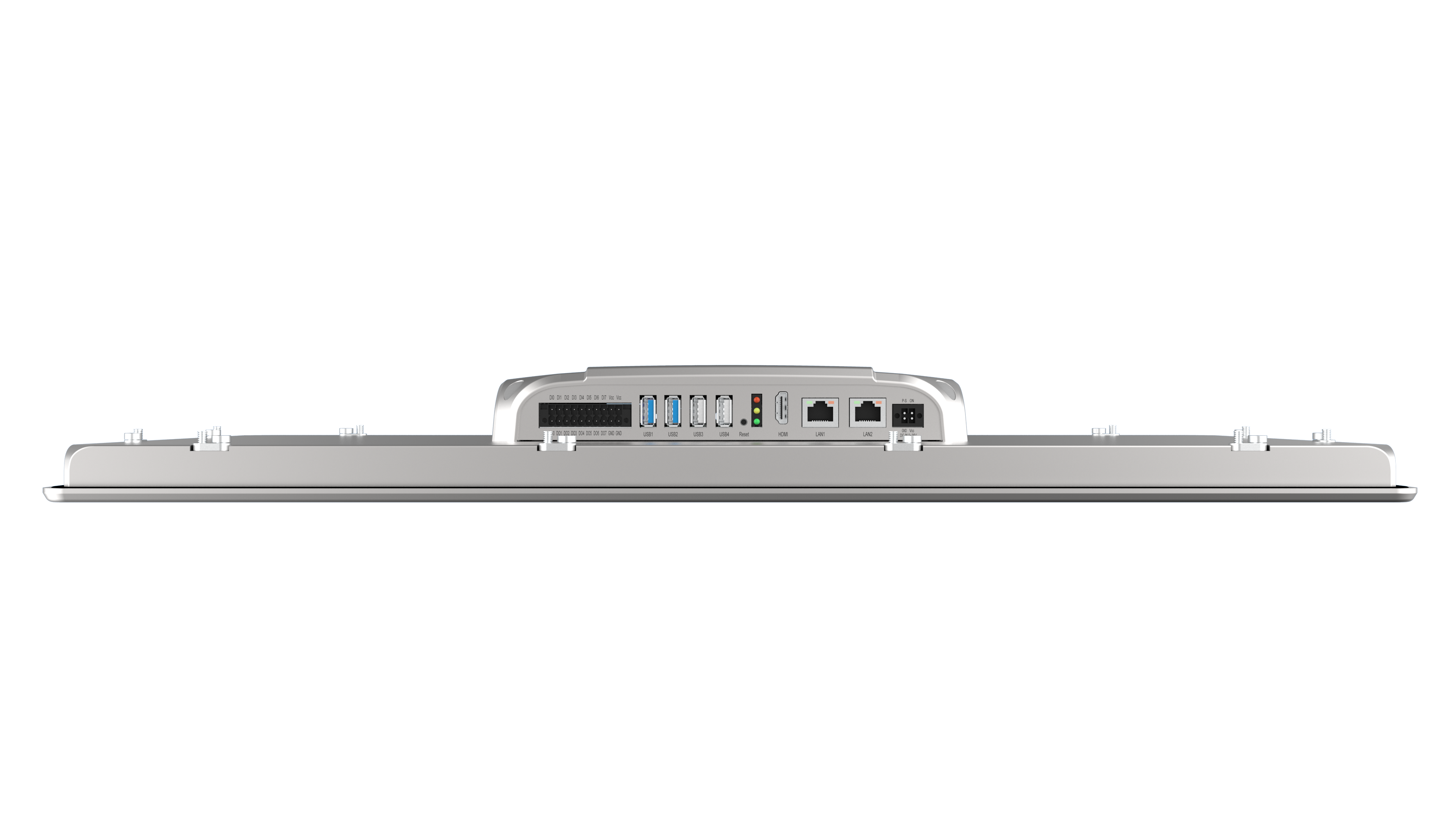

IAM2X240 — 24.0″ ARM Panel PC
24.0″ 1920 × 1080 ARM Panel PC with an IP65 front bezel.
The IAM2X240 is a 24.0″ ARM Panel PC with a 1920 × 1080 TFT LCD panel. It is available with single-point resistive or 10-point capacitive front options. It has an IP65 front bezel, an aluminium-magnesium alloy housing and a 0 to 50 °C operating range. Power input is 12–24 V DC. Mounting options are embedded, wall-mounted, VESA. It runs on a Rockchip RK3568 ARM processor.
In production
Technical specifications
16 specs
| Product | |
|---|---|
| Product family | IAM2X |
| Display | |
| Display Size | 24inches |
| Resolution | 1920 × 1080 |
| Panel Type | TFT LCD |
| Capacitive touch | Yes |
| Resistive touch | Yes |
| Processing | |
| CPU | Rockchip RK3568 |
| Memory | 2GB |
| Power | |
|---|---|
| Input Voltage (min) | 12V DC |
| Input Voltage (max) | 24V DC |
| Environmental | |
| Operating Temperature (min) | 0°C |
| Operating Temperature (max) | 50°C |
| Ingress Protection | IP65 |
| Mechanical | |
| Panel mount | Yes |
| Wall mount | Yes |
| VESA mount | Yes |
Across the series
6 differences
Only the specifications that differ across this product line. Everything the models share is on the full specification table above.
| Specification | IAM2X150 | IAM2X156 | IAM2X170 | IAM2X173 | IAM2X185 | This modelIAM2X240 |
|---|---|---|---|---|---|---|
| DisplayDisplay Size | 15inches | 15.6inches | 17inches | 17.3inches | 18.5inches | 24inches |
| Resolution | 1024 × 768 | 1366 × 768 | 1280 × 1024 | 1920 × 1080 | 1366 × 768 | 1920 × 1080 |
| EnvironmentalOperating Temperature (min) | -10°C | 0°C | 0°C | 0°C | 0°C | 0°C |
| Operating Temperature (max) | 65°C | 60°C | 50°C | 70°C | 50°C | 50°C |
| MechanicalPanel mount | Yes | Yes | Yes | Yes | — | Yes |
| Wall mount | — | — | — | — | Yes | Yes |
